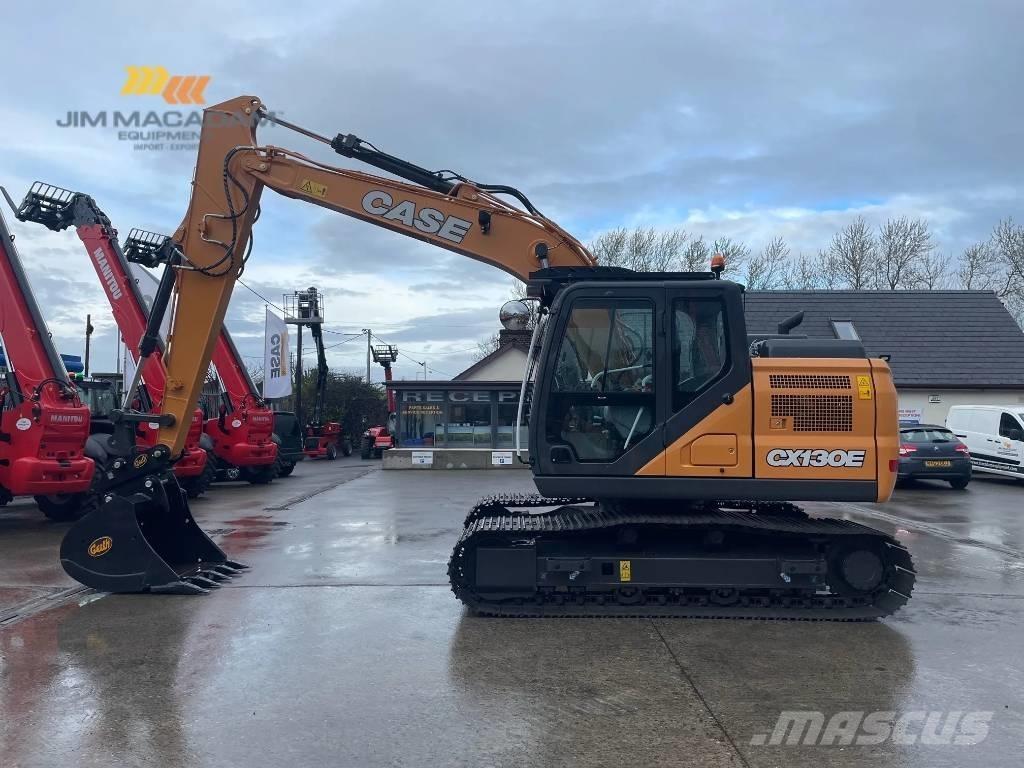

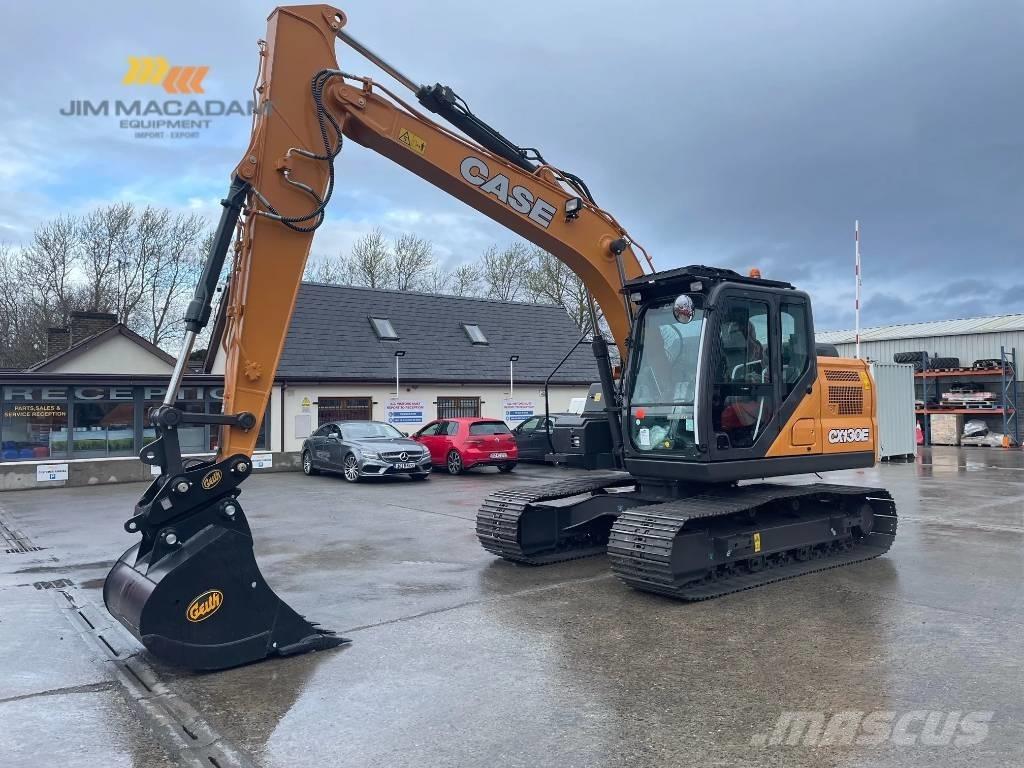

Case CX 130 E
Precio sin IVA
Solicitados
7
Favorito
Compartir
Guardar búsquedaImprimir
INFORMACIÓN
Categoría
Excavadoras sobre orugas
Marca / modelo
Case CX 130 E
Año
2023
Opciones extras
Nuevo/sin usar
Lugar
Dublin, Dublin
País
Irlanda
Mascus ID
288DB0F1
DETALLES
Motor
NEF4
Peso bruto
13,300 kg
Potencia del motor
78.8 kW (107 cv)
Fabricante del motor
FPT
Clase de emisiones
Fase V
Términos de entrega
EXW
Más información
ENHANCED PRECISION AND CONTROLLABILITY
Smooth control, efficient operation – more than ever
The trademark CASE Intelligent Hydraulic System (CIHS) is now paired with new work modes and adjustable hydraulic settings to deliver smoother and more efficient operation than ever before.
ENHANCED VERSATILITY
A high degree of customization for every task
The new-concept work modes with independent throttle position offer a precise match to the requirements of every task:
SP (Super Power) mode for maximum productivity (as in D-Series) with the throttle set at maximum power.
P (Power) mode replaces H and A mode in D-Series, with throttle settings from 1 to 10.
E (Eco) mode for maximum fuel economy, with throttle settings from 1 to 10.
L (Lifting) mode is optimized for object handling with power boost permanently activated and overload warning system, and throttle settings from 1 to 6.
The choice of available work modes can be locked by the machine owner.
NEW The ground-breaking Eco mode reduces fuel consumption through selective control of engine and pump depending on the movement. It maintains maximum pump torque to deliver high productivity, while minimizing fuel consumption during low effort operations.
The balance of the hydraulic flows can also be customized to suit the operator’s preferences:
+ “Arm In” vs “Boom Up”
+ “Arm In” vs “Swing”
The Case Cx130E Series takes versatility even further by enabling the operator to select the type of work tool and input the customizable model number on the machine’s monitor.
When selecting the flow and pressure settings, they can also set the maximum overflow to protect the attachment.
ENHANCED EFFICIENCY
Top performance, high fuel economy
The new-generation E-Series combines the proven energy saving features of the D-Series with new work modes and hydraulic settings to raise the bar on efficiency.
The advanced automatic energy management system inherited from the D-Series consists of six key energy control functionalities:
+ Pump Torque Control: prevents drops in engine speed due to over torque in high load operations while reducing fuel consumption in operations where maximum pump power is not required.
+ Boom Economy Control: increases fuel efficiency during boom down and swing movements.
+ Swing Relief Control: reduces the initial pump flow while improving control at the start of swing movements to lower fuel consumption.
+ Spool Stroke Control: automatically adjusts pressure based on the sensors’ feedback, avoiding unnecessary functionality.
+ Auto Idle / Idle Shutdown: customizable and manually switchable functions that lower engine rpms after a period of inactivity or shut down the engine after a period of idling.
With all these features, coordinated by the CASE Intelligent Hydraulic System, together with the new FPT engine and improved travel motor for additional mechanical efficiency, the E-Series excavators deliver unprecedented performance and high fuel economy.
The Case CX130E hydraulics have been further improved thanks to a 12% increase in the pump flow rate output.
CLEANER POWER
EU Stage V compliant engines
The new FPT NEF engines meet Stage V standards with the innovative HI-eSCR2 solution developed in-house, which only uses a Diesel Oxidation Catalyst and an integrated maintenance-free device on the SCR catalyst to achieve this dramatic reduction in emissions.
+ The SCR-on-Filter is “built-for-life” and requires no replacement or mechanical cleaning for its entire guaranteed emission regulation life.
+ The air intake flow is increased by a turbocharger with air-to-air cooling.
+ The multiple injection delivers best-in-class high torque performance at low rpms.
+ No EGR valve means 100% fresh air is used for combustion and no extra cooling system is required.
The new Stage V NEF engines can take their low-emission performance even further, as they can operate on B7 biodiesel and HVO.Mostrar más
