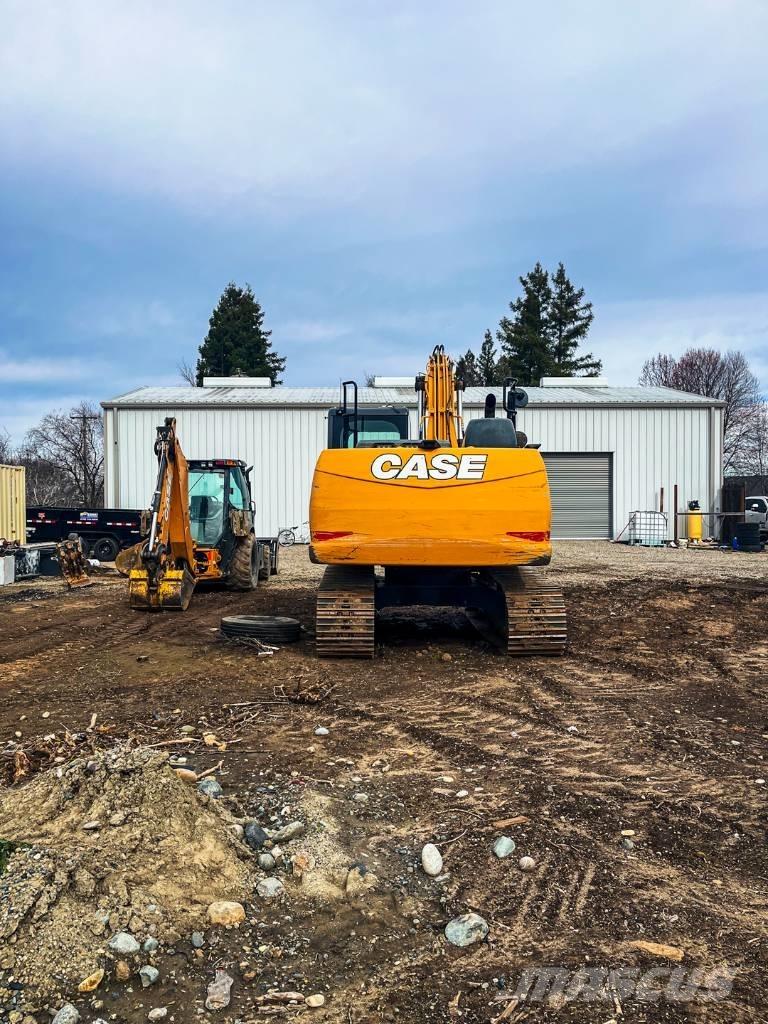

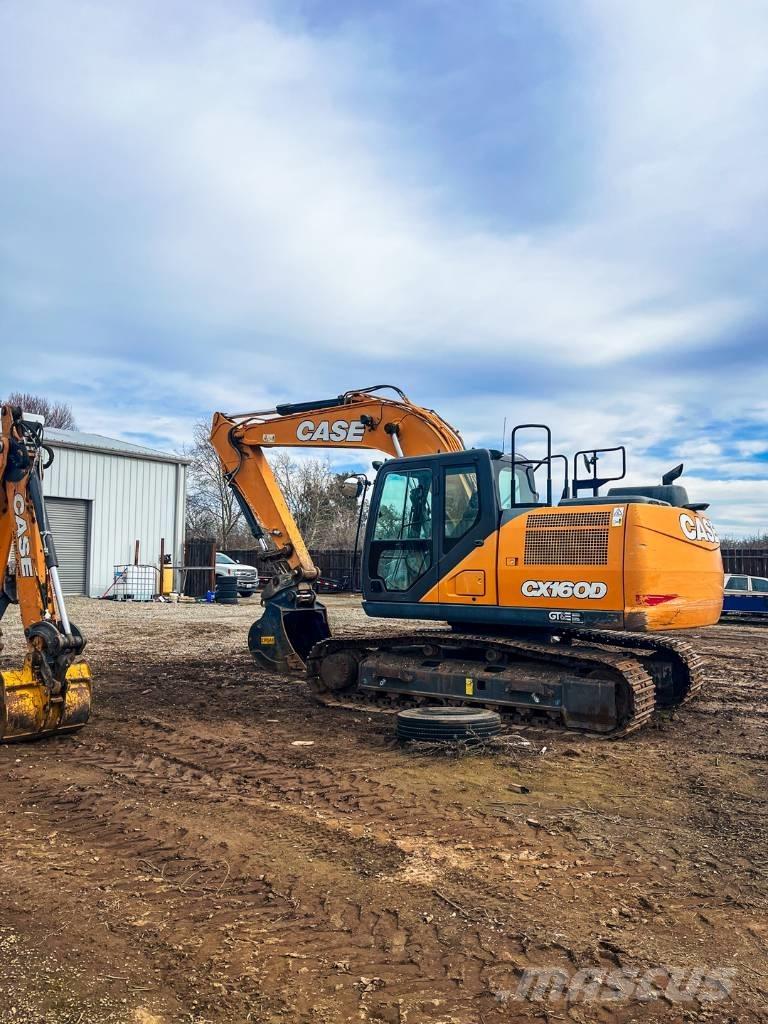

Case CX 160 D

Name: CASE CX 160 D
Brand: CASE
SKU: 3946BF4E
Price: 164500 USD

Precio sin IVA

Favorito

Guardar búsqueda

Imprimir

INFORMACIÓN

Categoría

Excavadoras sobre orugas

Marca / modelo

Case CX 160 D

Año

2019

Horas de uso

3,000 h

Lugar

Gridley, California

País

Estados Unidos

Grado general

Mascus ID

3946BF4E

FIJACIÓN DE PRECIOS

Seleccione una moneda

DETALLES

Motor

AR-4JJ1X

Potencia del motor

84.6 kW (115 cv)

Fabricante del motor

Isuzu

Más información

2019 Case CX160D Excavator, Isuzu Engine AR-4JJ1X, Tier 4 Final, Water-Cooled, Turbocharged, 4-Cylinder, ISO Mirrors - 3, Viscous Cab Mounts, Upper Mounted Work Light, ROPS Protection, FOPS Cab Top Guard - Level 1, AC, Head, Defrost with Auto Climate Control, 3,000 hours. Included Optional Equipment -Long arm – 10 ft 0 in (3.05 m) -Side-view camera Engine -Make: Isuzu -Model: AR-4JJ1X -Emissions Certification: Tier 4 Final -Fuel Type: Requires ultra-low sulfur fuel B5 biodiesel tolerant -Cooling: Water-Cooled -Aspiration: Turbocharger with air cooled intercooler -Cylinders: 4 -Displacement: 3L -Fuel Injection: Direct injection - Electronic -Net Horsepower - SAE J1349: 112 HP at 2200 RPM -Gross Horsepower - SAE 1349: 115 HP at 2200 RPM -Net Max Torque - SAE 1349: 257lbf ft Drivetrain -Travel Control: Dual stage relief counterbalance design -Brakes: Mechanical disc -Service Brakes: SAHR disc - each motor -Two Travel Speeds: Max High Speed - 3.4 mph Max Low Speed - 1.7 mph (Automatic downshift) -Drawbar Pull: 36,100 lbf -Gradeability: 70% - 35 degree slope Electrical -Voltage: 24 Volts -Alternator Rating: 50 amp -Batteries: 2 x 12 Volt Battery reserve capacity - 72 Ah5 hour -Work Lights - 4: 24 Volt/70 watt (1 boom, 1 upper, 2 cab) Operator Environment -Air Conditioner Output: 18,100 BTU an hr -Heater Output: 20,150 BTU an hr -Sound Level Inside Cab - ISO6395: 70 dBA -Electrical Outlet: 12 Volt -Cab Interior Light: 10 Watt -Rear View Camera: Standard -Seat: Heated, Air-suspension Operating Weight -Operating Weight: 38,400 lb -With Shoes: 2 ft 0 in -With Boom: 16 ft 11 in -With Arm: 8 ft 7 in -With Bucket: 1,067 lb -With Counterweight: 6,980 lb NOTE: With operator, full fuel, and standard equipment. Ground Pressure -Standard Operating Weight: 5.9 psi (0.41 bar) with 23.6 in (600 mm) triple grouser shoes Hydraulics -System Design: Open center -Main pumps: Two-variable displacement axial piston -Max. rated flow per pump: 37.5 gpm -Max rated flow total: 75.02 gpm -System pressures: Boom, arm and bucket 4,970 psi with Power Boost 5,260 psi Travel circuits 4,970 psi Swing circuits 4,050 psi -Pilot pump: 1 x gear design -Max. capacity: 5.8 gpm -Controls: with boom arm holding valve -Right track travel, bucket, boom and arm acceleration: 1 x Four-spool section -Left track travel, auxiliary, swing, boom and arm acceleration: 1 x Five-spool section -Work mode selections: SP - Speed Priority, H - Heavy Duty, A - Automatic -Swing Motor: Fixed displacement axial piston -Swing final drive: Planetary gear reduction -Travel motor: Two-speed independent travel axial piston Service Capacities -Fuel tank: 79 gal -Hydraulic system: 44 gal -Hydraulic tank: 22 gal -Engine oil with filter: 4.5 gal -Swing drive: 1.3 gal -Final drive: 1.5 gal -Cooling system: 4.7 gal -DEF tank: 22 gal (NOTE: AVAILABLE ONLY VIA APPOINTMENT. PLEASE GET IN TOUCH AND SCHEDULE AN APPOINTMENT.)Mostrar más

ReQuip Corporation

16516 Washington Dr 92335 Fontana California Estados Unidos
