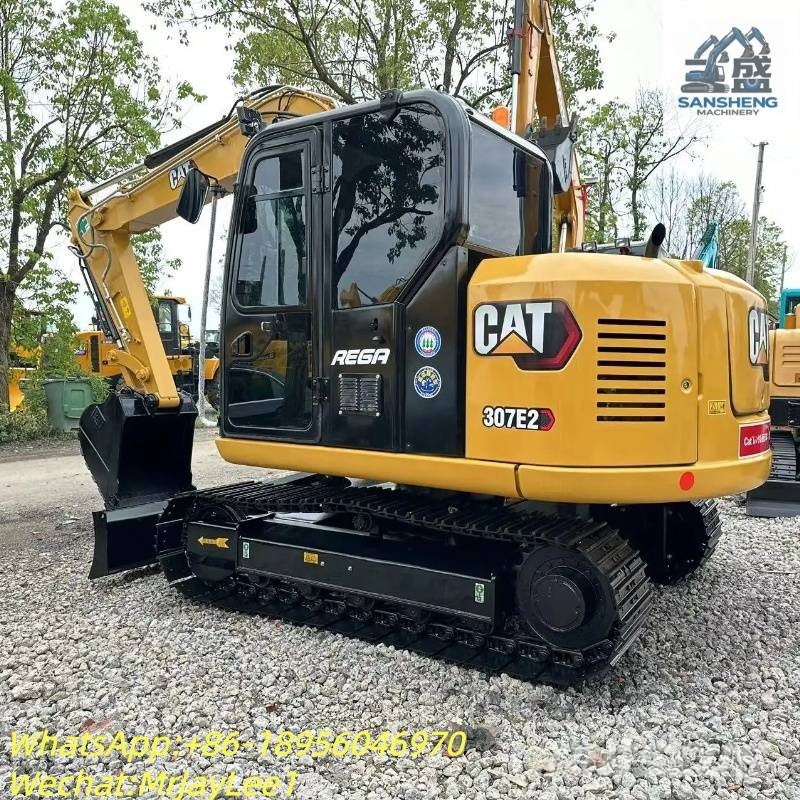

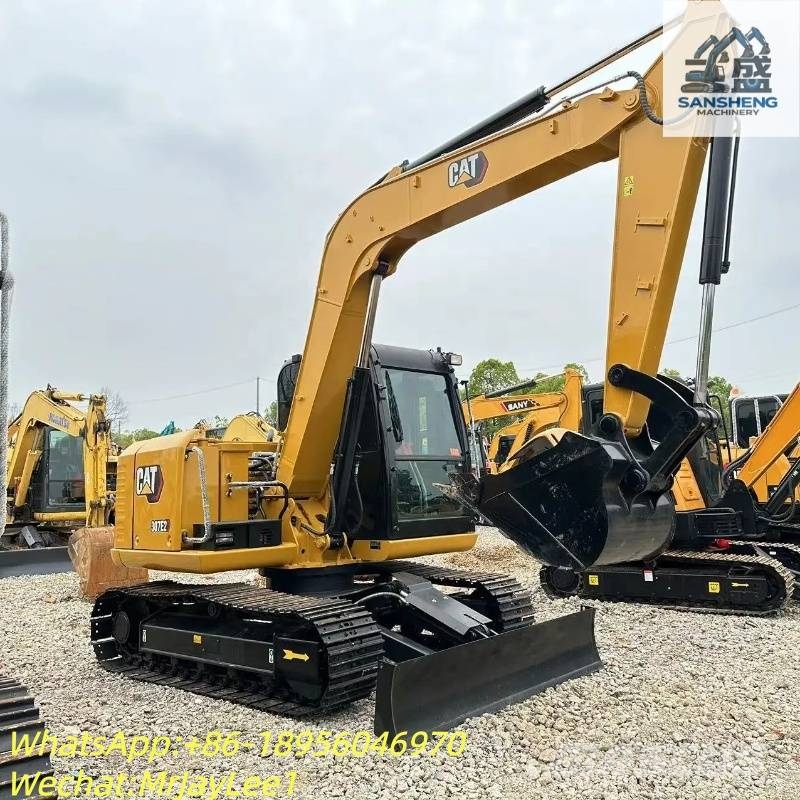

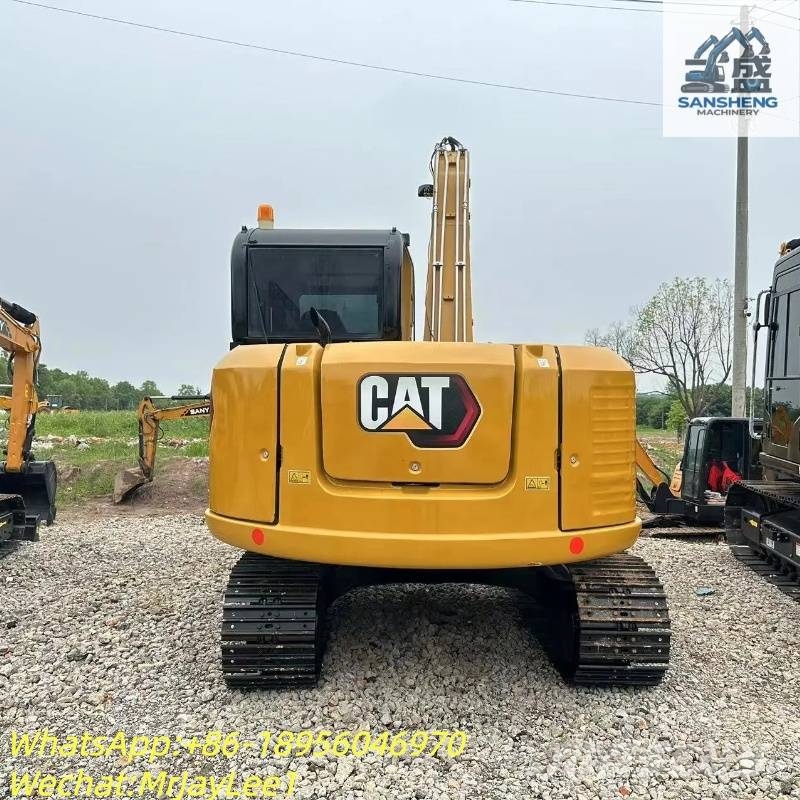

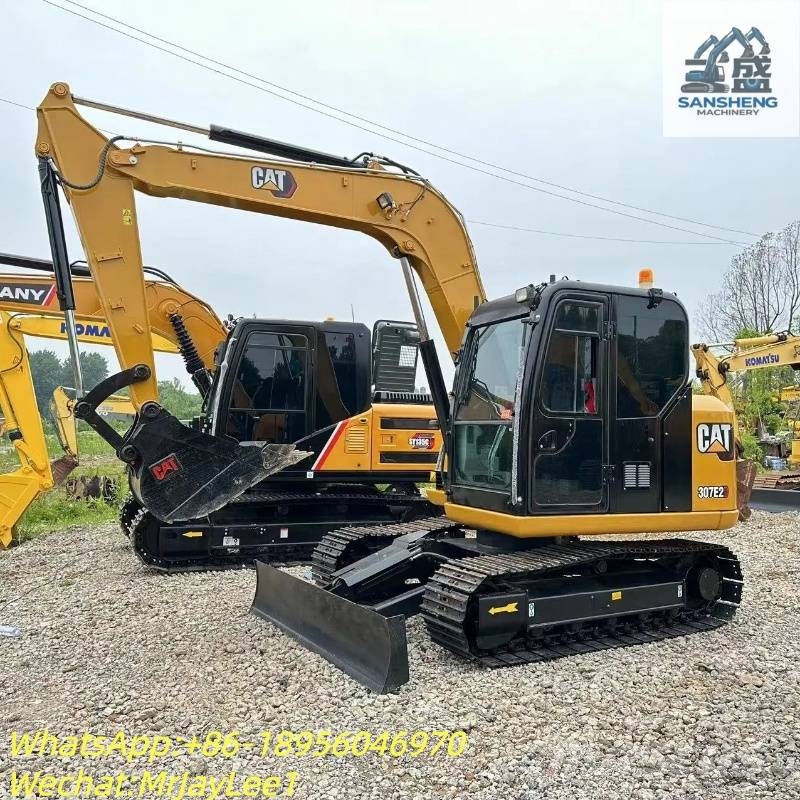

CAT 307E

We supply a full range of excavator & machinery attachments: Rock Bucket, Skeleton Bucket, Loosening Bucket, Cleaning Bucket, Tilt Bucket, Ditch Bucket, Bucket Clamp,Clamshell Bucket, Rotary Screen,Crusher Bucket,Crushing & Screening Bucket, Rake, Ripper, Thumb Clip and Compaction Wheel Service Hours: 24/7 available Address: Hefei,Anhui, China Contact Person: Mr.Jay Lee WhatsApp:+86 18956046970 Mobile:+86 18956046970 WeChat: jayusedequipment Email: Packaging & Shipping Solutions We offer multiple shipping options to meet your demands: Flat Rack: Ideal for large construction machinery with no disassembly required. Container Shipment: Cost-effective and time- efficient Bulk Carrier:Perfect for oversized construction equipment. Ro-Ro Shipment: Fast delivery, applicable to all types

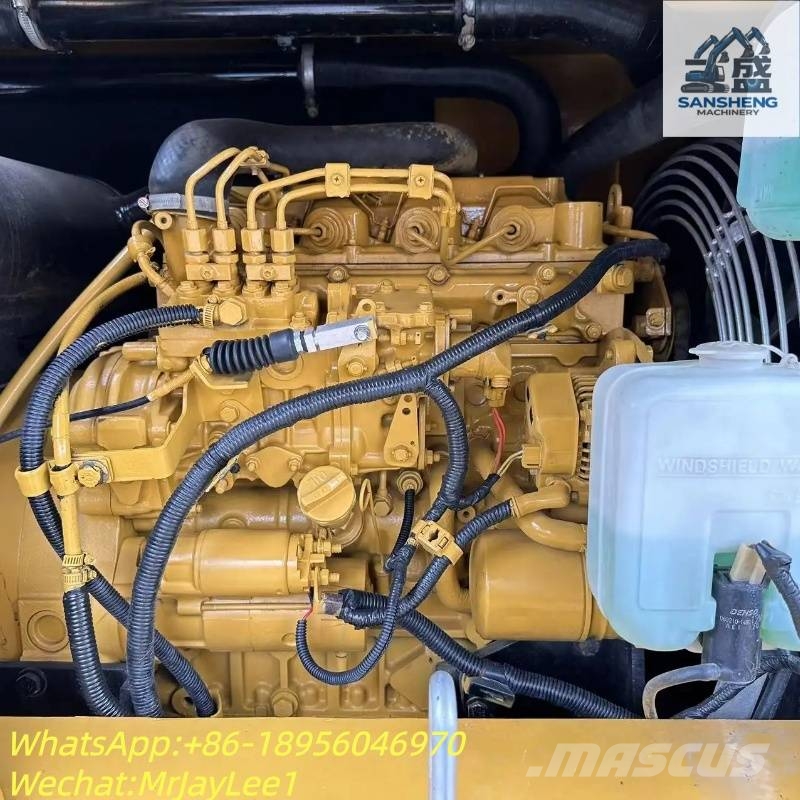

Bucket type: Counterbalanced bucket Tonnage (tons): 7 Overall machine working weight (kg): 6800 Bucket capacity (m³): 0.31 Rotation speed (rpm) 10.8 Travel speed (km/h) 5.1/3.2 Grade climbing capacity (%) 30 degrees Bucket digging force (kN) 50.6 Boom digging force (kN) 37.1 Maximum traction force (kN) 56.9 Power system Engine model Caterpillar C2.6 DI Turbo Rated power (kw/rpm) 43 Displacement (L) 2.615 Cylinder diameter × stroke (mm) 87 × 110 Cooling method water cooling Working mode direct injection; turbocharging; meets EPA Tier 2 standards Hydraulic system Working hydraulic oil circuit (Mpa) 28 Travel hydraulic circuit (Mpa) 28 Rotation hydraulic circuit (Mpa) 24 Oil capacity Fuel tank (L) 125 Hydraulic oil tank (L) 51 Hydraulic system (L) 78 Engine oil replacement volume (L) 11 Coolant (L) 14 Main body dimensions Total length for transportation (mm) 6070 Total width for transportation (mm) 2300 Total height for transportation (mm) 2630 Full height of the driver's cabin (mm) 2630 Total length of the tracks (mm) 2760 Track plate width (mm) 450 Weight clearance from the ground (mm) 775 Minimum rotation radius of the front working device (mm) 1690 Rotation radius of the rear (mm) 1820 Working range Maximum digging radius (mm) 6300 Maximum digging radius when the machine is stationary (mm) 6160 Maximum digging depth (mm) 4070 Maximum digging height (mm) 7274 Maximum unloading height (mm) 5190 Lifting or pushing depth of the plow (mm) Lifting 445
