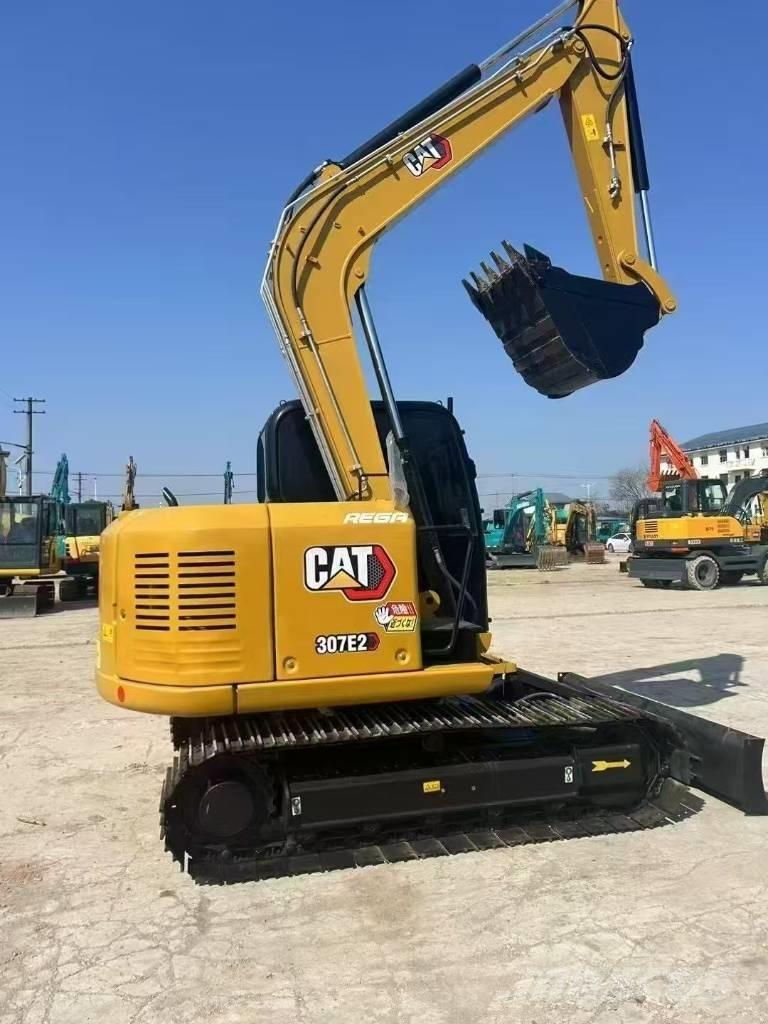

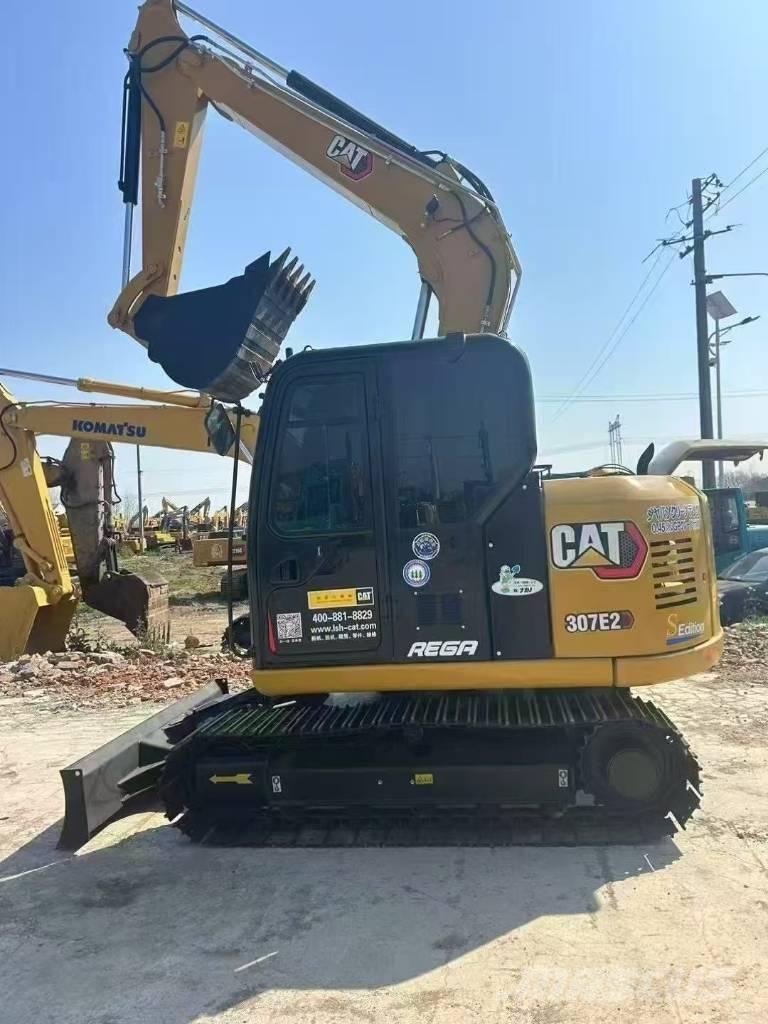

CAT 307E2

Technical Specifications of CAT307E2 Excavator - Basic Parameters - Engine Model: Cat C2.6 DI Turbo - Rated Net Power: 41.5 kW - Operating Weight: 6,900 kg - Engine Parameters - Bore: 87 mm - Stroke: 110 mm - Displacement: 2.6 L - Travel System Parameters - Low - speed Travel Speed: 3.2 km/h - High - speed Travel Speed: 5.1 km/h - Maximum Gradability: 30° - Hydraulic System Parameters - Work Equipment Hydraulic Pressure: 28 MPa - Swing Hydraulic Pressure: 28 MPa - Travel Hydraulic Pressure: 28 MPa - Bucket Digging Force: 50.6 kN - Stick Digging Force: 37.1 kN - Main Pump Flow: 154 L/min - Capacity Parameters - Fuel Tank Capacity: 135 L - Hydraulic Oil Tank Capacity: 51 L - Cooling System Capacity: 14 L - Overall Dimension Parameters - Undercarriage Width: 2,300 mm - Dozer Blade Width: 2,300 mm - Bucket Parameter - Standard Bucket Capacity: 0.33 m³
