CAT 325

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 13696501072 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

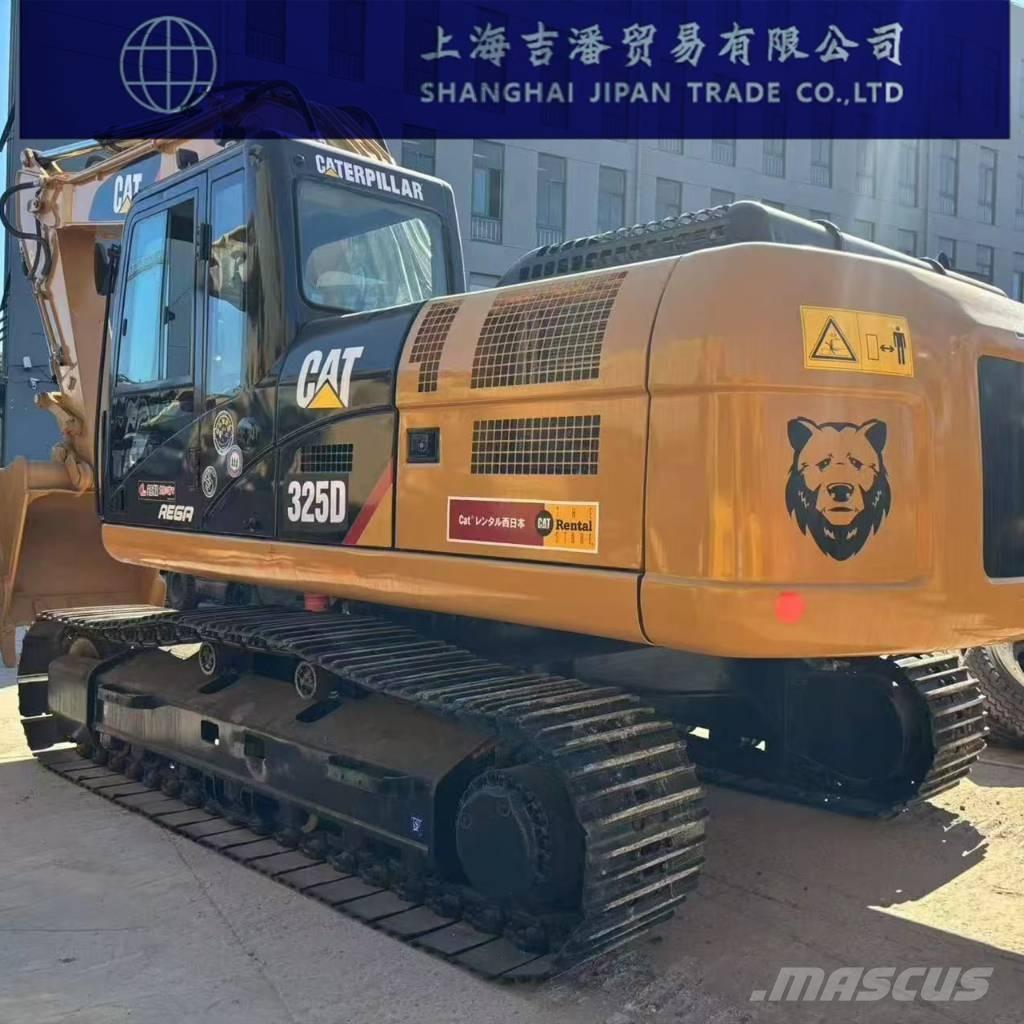

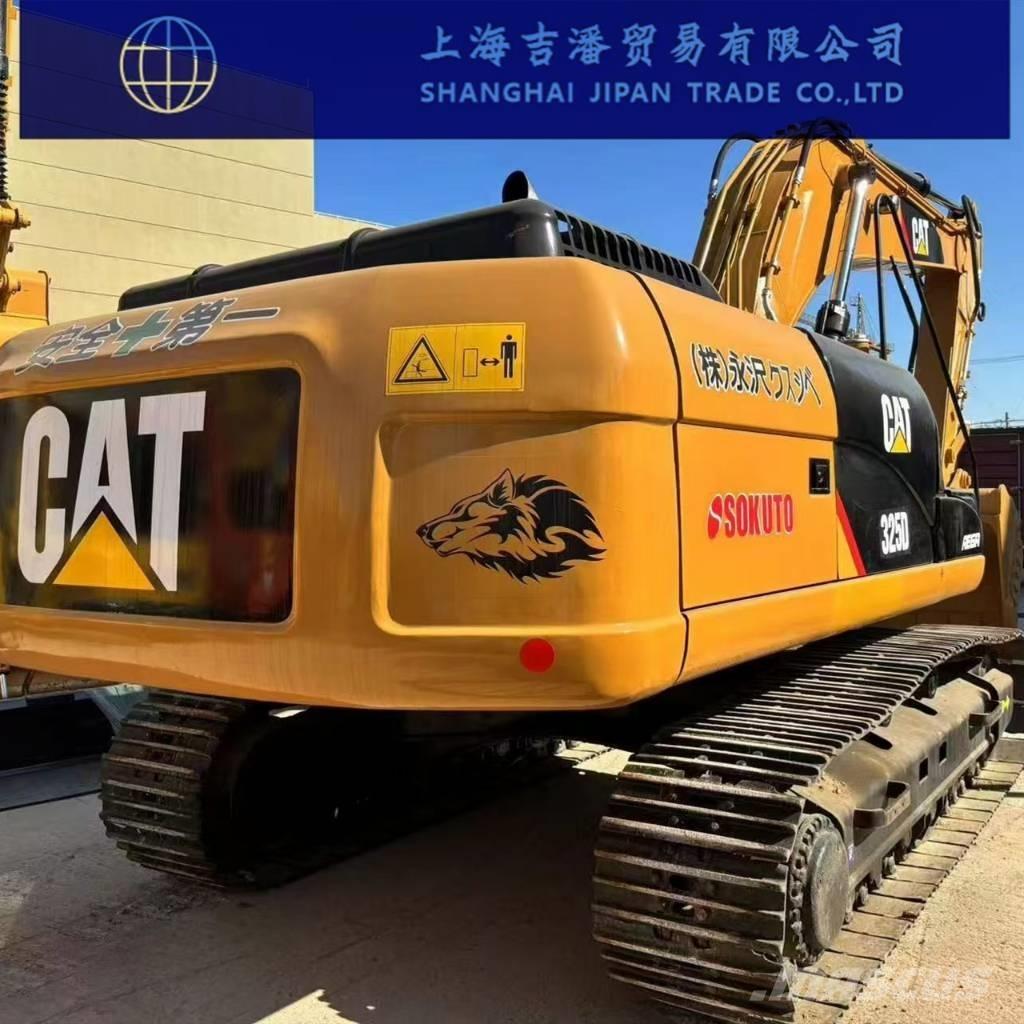

Caterpillar 325DL Excavator Parameter Configuration specification The working weight of the whole machine (kg) is 29240 Bucket capacity (m³) 1.4 Boom length (mm) 6150 Stick length (mm) 3750 Origin: Japan Tonnage (tons) 25 Bucket backhoe Power: Traditional power Bucket backhoe Joint ventures/imports Power: Traditional power performance Slewing speed (rpm) 10.2 Travel speed (km/h) 5.3 dynamical system Engine model Caterpillar CAT C7ACERT Rated power (kw/rpm) 141.7/1800 Displacement (L) 7.2 Number of cylinders (pcs) 6 Bore × stroke (mm) 110×127 Cooling method: Water cooling Hydraulic system Main overflow set pressure (Mpa) 36 The maximum flow rate of the main pump (l/min) is 470 Oil capacity Fuel tank (L) 520 Hydraulic System (L) 310 Engine oil change volume (L) 10 Coolant (L) 30 Body size Total length of transport (mm) 10410 Total Transport Width (mm) 3390 Total height of transport (mm) 3632 Cab total height (mm) 3040 Counterweight ground clearance (mm) 1110 Track shoe width (mm) 800 Total Track Width (mm) 3390 Track gauge (mm) 2590 Minimum ground clearance (mm) 490 Scope of work The maximum excavation radius of the stopping surface (mm) is 11153 Maximum digging depth (mm) 7833 Maximum digging height (mm) 10297 Maximum unloading height (mm) 7102 Maximum vertical digging depth (mm) 6590
