BIK TC-170
Precio sin IVA
Solicitados
5
Favorito
Compartir
Guardar búsqueda
Imprimir
INFORMACIÓN
Categoría
Otras máquinas de elevación
Marca / modelo
BIK TC-170
Opciones extras
Nuevo/sin usar
Lugar
Milford, Massachusetts
País
Estados Unidos
Grado general
1
2
3
4
5
Mascus ID
9CCD15B7
DETALLES
Más información
BOOM DETAILS

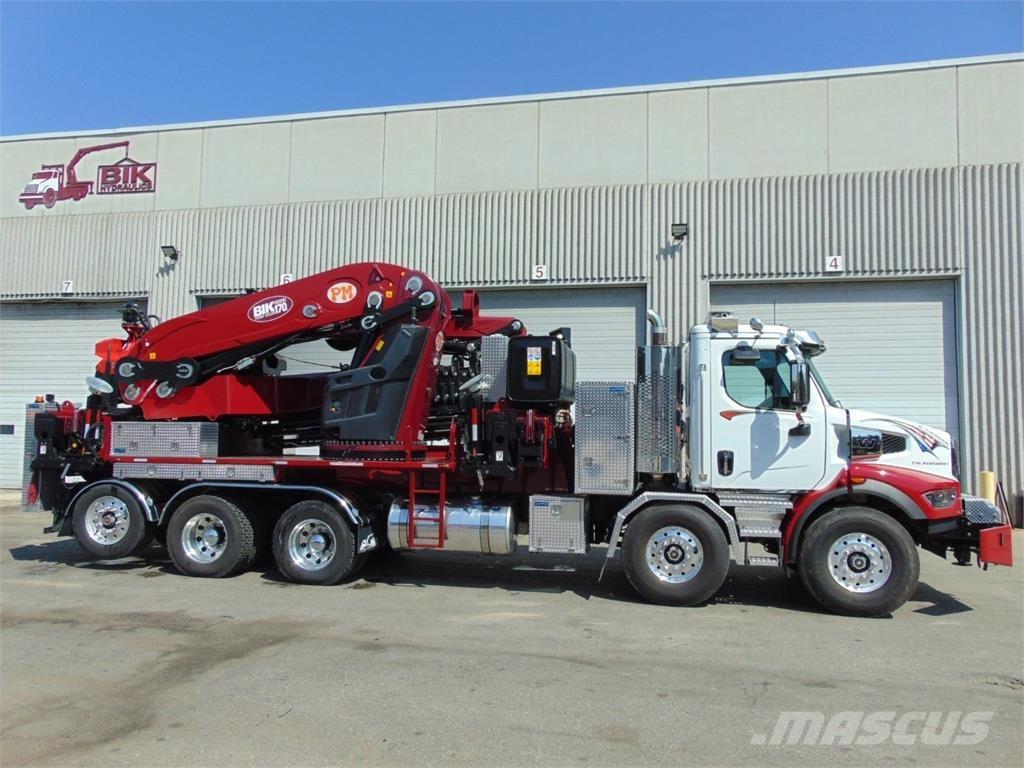

New – BIK Tree-Care Series TC-170 – PM 210 Knuckle Boom
Hydraulic Knuckle Boom with Jib fold on top of deck
8 hydraulic extensions in main and 6 extension in jib with one manual grapple extension
170’ total vertical reach
(158’ horizontal)
Continuous Rotation
and Dual Planetary Gear
Rotation
Double pilot operated on slewing and pilot operated check valves on all cylinders
Special Extra High Tensile Steel Structure, Lowest weight to ton/m size in its class
Dual Main lift and dual knuckle lift cylinders – greater power and easy access , Boom / bed wings painted your colour Red
Hydraulic Extra Wide Main outriggers
at pedestal – 40’
– hydraulic tilting when retracted
Auxilary
34’ spread stabilizers
installed at rear behind drives, 2-hyd out & down rearward & 1-at front bumoer
Hydraulic Oil Cooler, high pressure return filter and min. 92-gallon oil tank for boom
2.7 ton single part line lifting winch plumbed to the end of jib (custom jib stowe brackets on top of bed wing to be established)
DANFOSS
Split Valve – 2 pressure line system
Proportional Control Valve
& SCANRECO
Proportional
Radio Remote Control
PM
Power Tronic
Electronic System
allowing constant crane monitoring & visual display
Scanreco Radio Remote
Control includes: 2-batteries, in-cab charger,
back-up cord, Crane Painted PM Blue, load chart
in FT. & LBS.
Warranty: 1-Yr. part & labour on entire boom, 3-Yr. on Structural Components
TRUCK DETAILS
New –

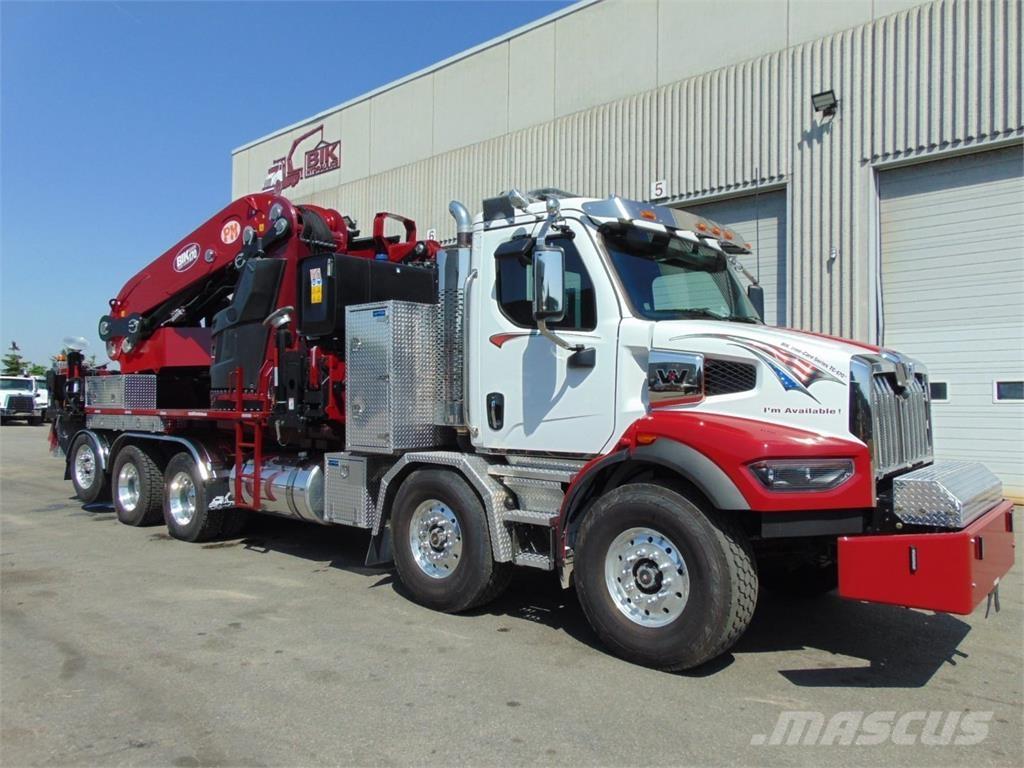

Western Star 4800 Sloped Short Nose
T/A Steer-T/A Rear with Tag axle– 5 Axle
DDC-13 Diesel –
102,000 lb GVWR
470 hp with Jake
Eaton Ultrashift 18 spd trans.
(2) x 20,000 LB fronts with 425 / 65R22.5 tires
46,000 LB Rears on
air ride Susp.
20,000 lb self steer tag axle behind t/a’s
Double Frame
Polished ALCOA Aluminum Wheels front
and outer rear
Dual Chrome single polished Exhaust, Chrome Grille &
Bumper
Dual 80 gallon aluminum fuel tank
Loaded with Options including:

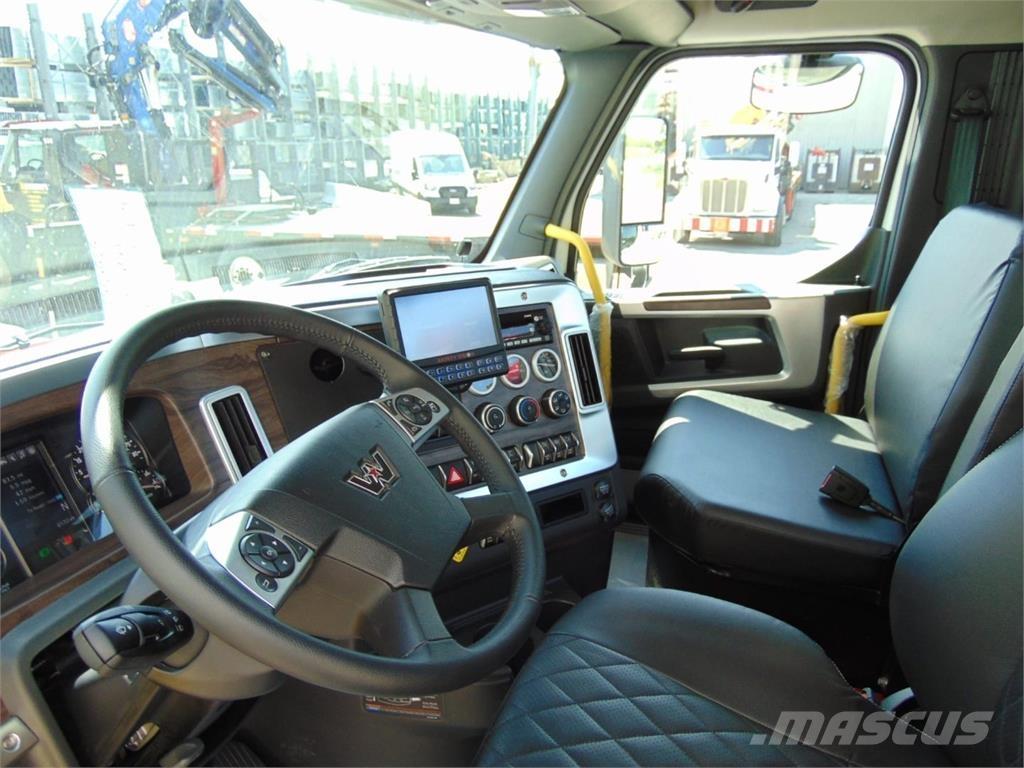

A/C, Tilt/Telescopic steering, top level
Interior,
AM/FM/CD,
air driver’s seat, fixed passenger seat, cruise, heated mirrors, exterior S/S sun visor, front steel bumper with fog lights and open top storage box behind bumper both sides, 4 wheel lock-ups, power
window both sides , power mirrors &
door locks,
Air ride cab, full differential locks, trailer air tow package,
truck cab white color, truck painted your colours as requested, rear half fender from checker plate (similar to 2
nd
steer axle curves), rear 3-section lights to be in checke rplate material and rear truck frame cover, Dot bumper,
etc…
Options Included
:
(4) pcs – 2” PVC stab pads w/holders
(7)
Alum storage box installed
Custom re-enforced manual extension for grapple
Mecanil SG-280 Grapple Saw with spare parts kit
On site boom feature/operation familiarization by BIK tech for 2-3 days
Additional Options Available:
Dump deck or Chip Box type dump body (instead of flat deck or 5
th
wheel)
(2) Additional Manual
pull out boom extensions for regular lifting hook to end of hydraulic reach (adds
11’ more reach)
(1) Aluminum single man self-levelling basket
Mecanil SG160 grapple saw with spare parts kit
Mostrar más
