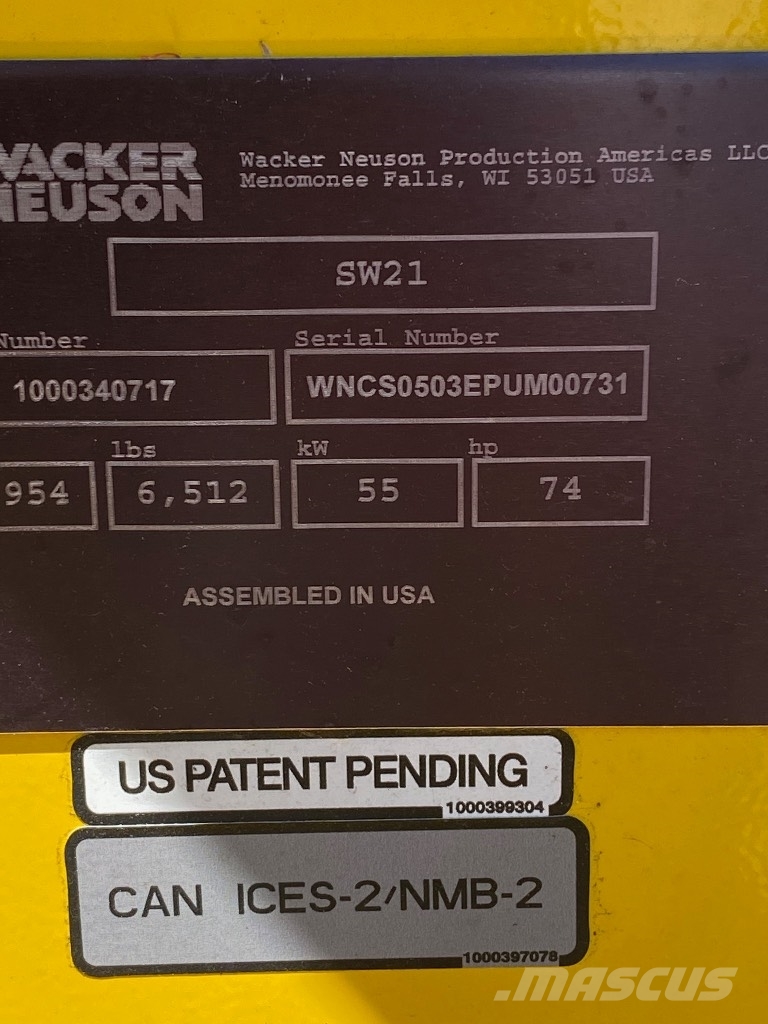

Número de serie
WNCS0503EPUM00731
Capacidad máxima de elevación
953 kg
Tipo de carrocería
Chasís fijo
Tipo de cabina
Cabina cerrada
Clase de emisiones
Fase IV
Potencia del motor
54.4 kW (74 cv)
Velocidad máxima
19.3 km/h
Tipo de carrocería
Sobre ruedas
Llantas delanteras/restante del tren
100
Restante de llantas traseras
100
Más información
BASE MODEL W/ ADDED FACTORY INSTALLED OPTIONS:
• AC04 - HYDRAULIC COUPLER
• CB05 - CAB TYPE ENCLOSED - HEAT & AC
• CP04 - SELECTABLE EH JOYSTICK CONTROLS
• DS02 - 2-SPEED DRIVE 8-12MPH
• FS01 - FAN VARIABLE SPEED COOLING
• FT14 - ONE-WAY HYDRAULIC BUCKET LEVELING
• FT17 - RIDE CONTROL
• ST01 - SEAT MECHANICAL SUSPENSION
• 1000365245 - DELUXE TELEMATICS

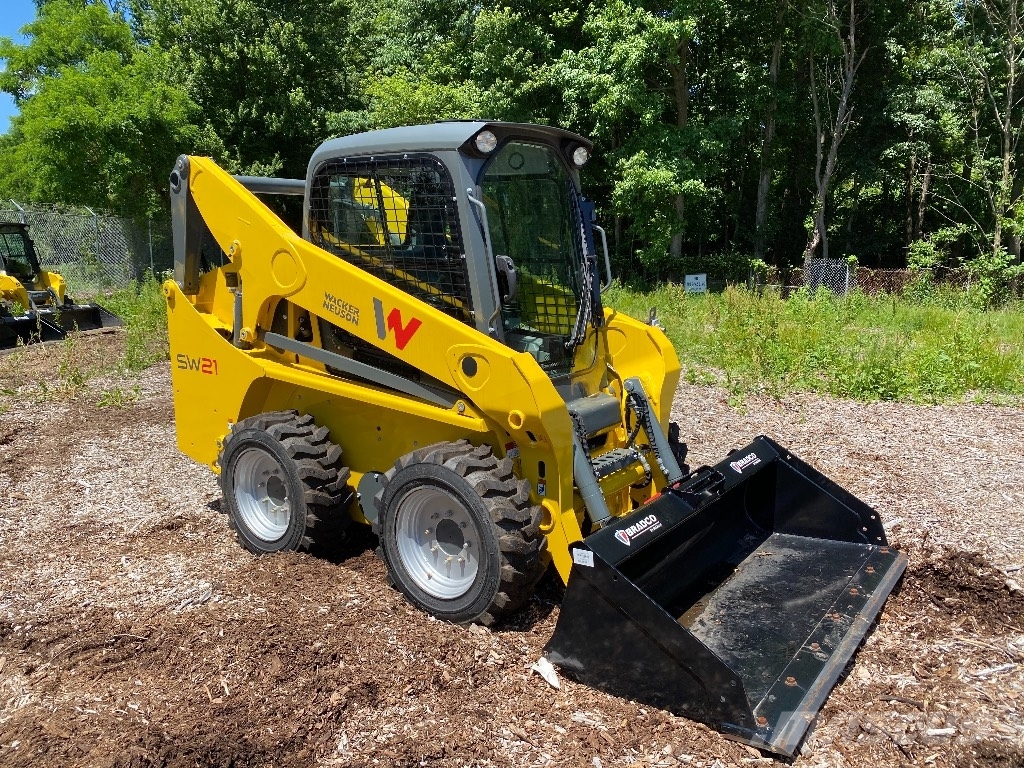

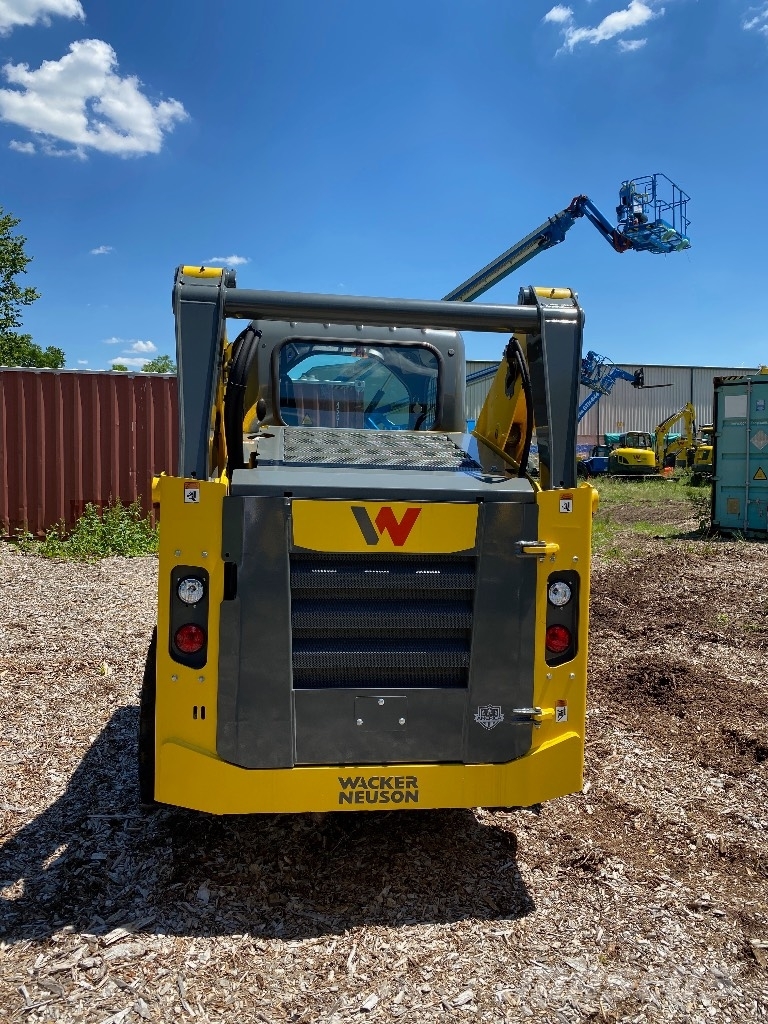

SW21 Base Skid Steer Information:
Operating Data:
• Height Top Of ROPS: 81.5"
• Overall length w/ bucket: 134.9"
• Overall length w/o bucket: 106.6"
• Operating weight: 6,512 lb.
• Height Hinge Pin Max: 124"
• Rated Operating Capacity 50%: 2,100 lb.
• Dump reach: 34.1"
• Dump height max. at max height: 96.5"
• Angle of departure: 24°
• Tipping angle (Bucket dump) w/bucket at max height: 42°
• Ground clearance: 7.6"
• Breakout force max. - Bucket: 5,300 lbf
• Breakout force max. - Boom: 5,000 lbf
• Width: 65.9"
Engine / Motor:
• Engine / Motor manufacturer: Kohler
• Engine / Motor: KDI 2504 TCR
• Engine performance: 74 hp
• Fuel tank capacity: 32.8 gal.
• Hydraulic System:
• Auxiliary Hydraulics - Standard Flow: 20 gpm
• Auxiliary Hydraulics - High Flow: 30 gpm
• Hydraulic oil tank: 2.9 gal.
Power Transmission:
• Travel speed: 8 mph (low), 12 mph (high)
• Standard tires: 10" x 16.5"
Standard Components:
• Vertical Lift Arm
• 74.3 HP Kohler Tier IV Final diesel engine
with maintenance-free after treatment
• ROP’s / FOP’s Level 1 Canopy with Side Screens
• Mechanical Hand-Foot Controls
• 10" x 16.5" All-Terrain Tires
• 20.1 gal./min. Auxiliary flow
• 2" Seat Belt

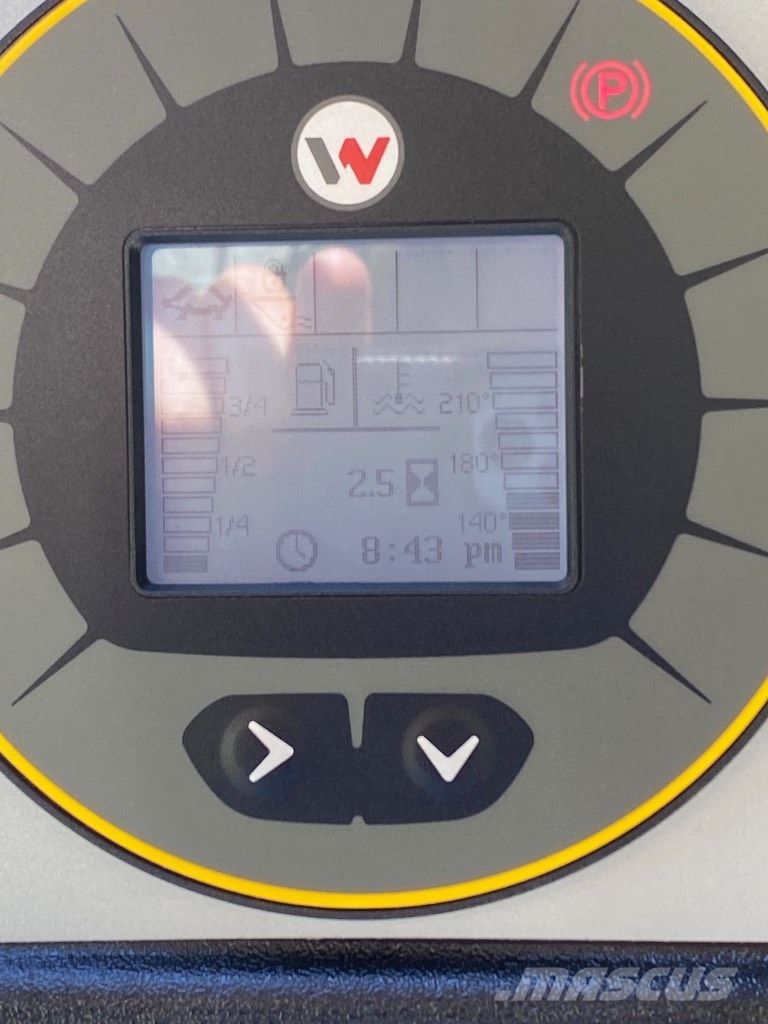

• 3" Single Color Display
• 2 Front single beam working lights
• 2 Rear working lightsMostrar más
