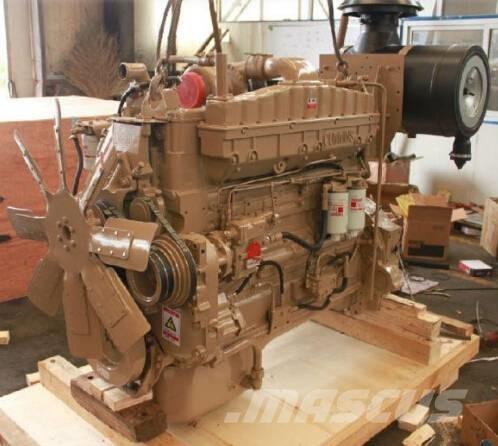

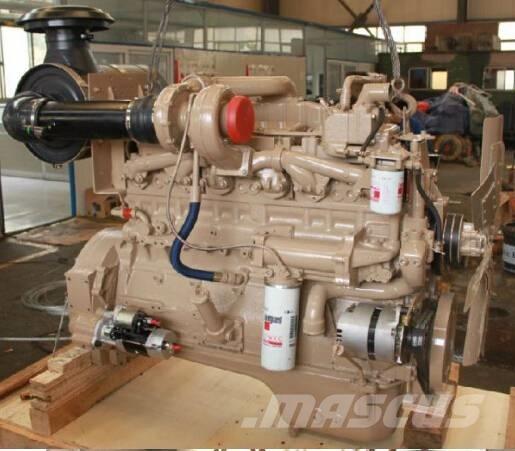

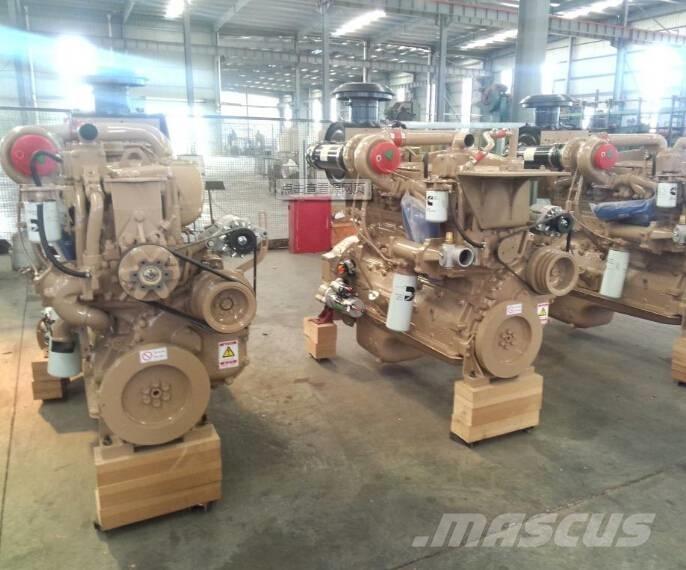

Cummins NT855-D(M)

Cummins NT855-D(M)275 Marine G-Drive Diesel Engine General Information of Cummins NT855-D(M)275 Marine G-Drive Diesel Engine Engine Model NT855-D(M)275 Engine Type 6 Cylinders in Line Displacement 14 L Bore*Stroke(mm) 140 * 152 CPL Number CQ138 Net Weight (Engine only) 1270 Kg Overall Diemension(L*W*H) 1453mm*947mm*1296mm Technical Specification of Cummins NT855-D(M)275 Marine G-Drive Diesel Engine Marine Certification CCS/IMO Aspiration Turbocharged Fuel System PT Pump Electrical System(Starter Motor/Alternator) 12V/24V Rated HP Production Tolerance ±2% Fuel Rail Pressure 875KPa Performance Data of Cummins NT855-D(M)275 Marine G-Drive Diesel Engine Rated Power/Speed 205 kW/275HP @ 1500rpm Standby Power/Speed 226 kW/302HP @ 1500rpm Fuel Consumption @ Rated Power 203g/Kw.h Fuel Consumption @ Standby Power 199g/Kw.h Idel Speed 575~650 rpm
