OUTOTEC

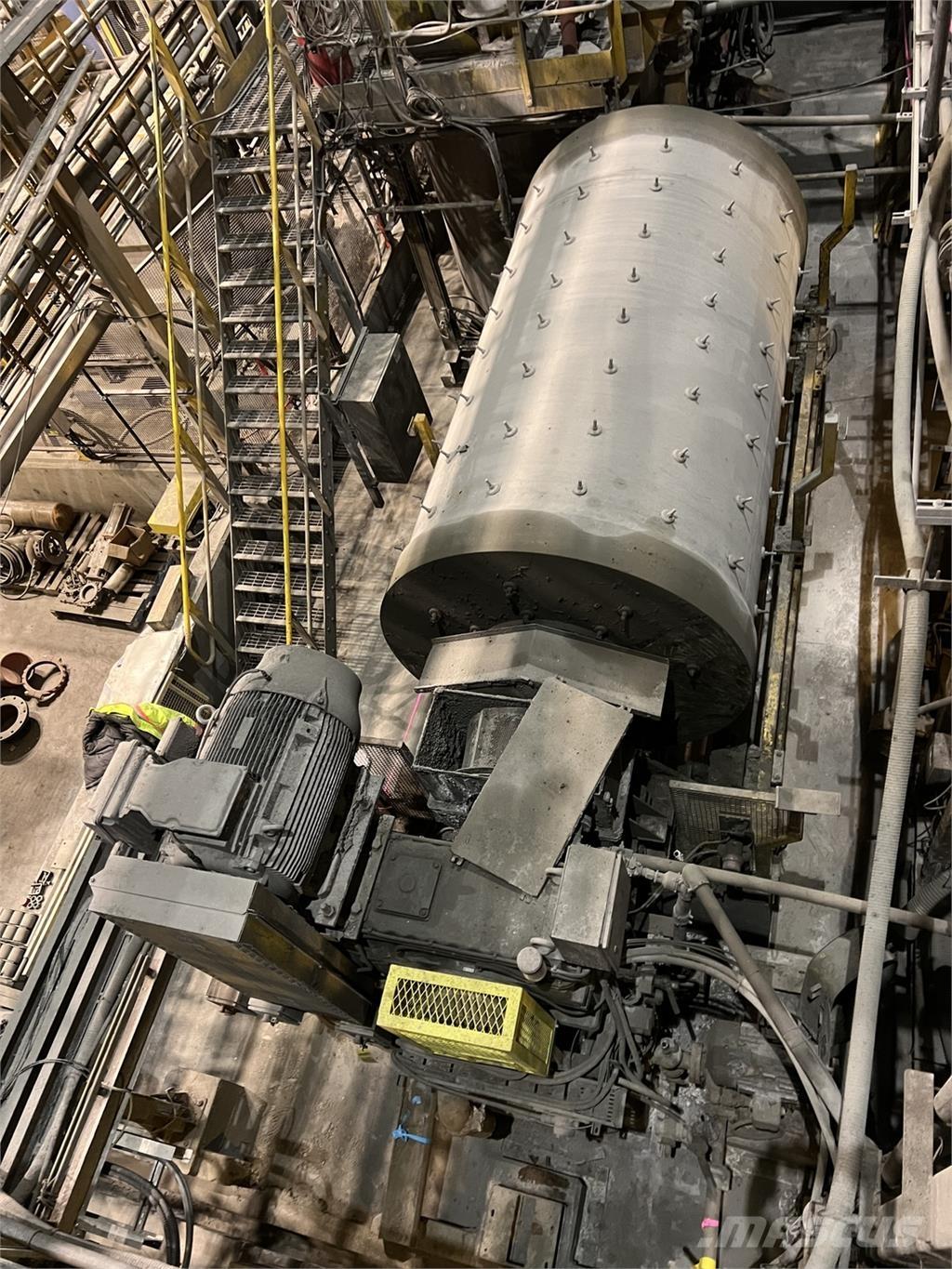

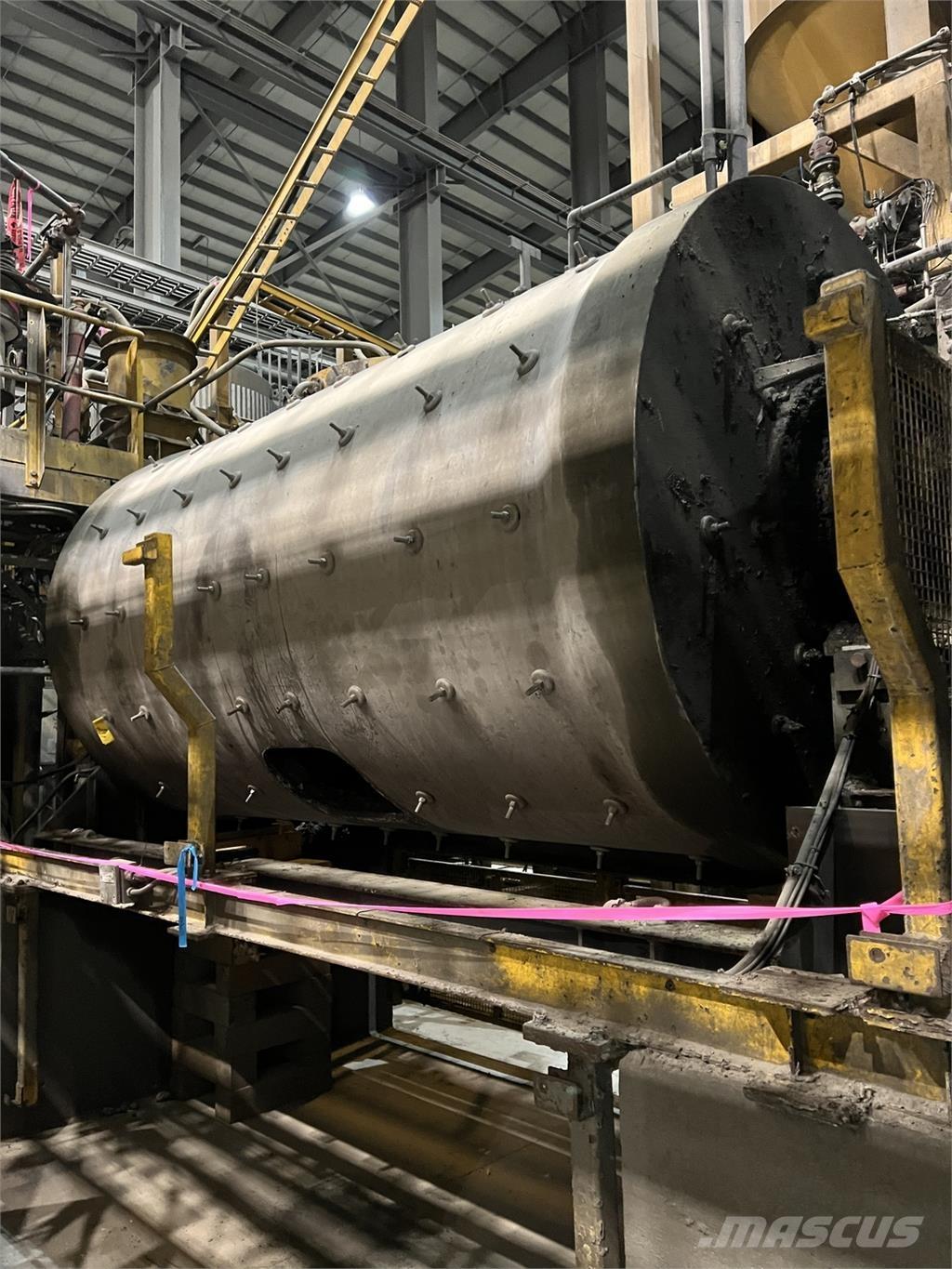

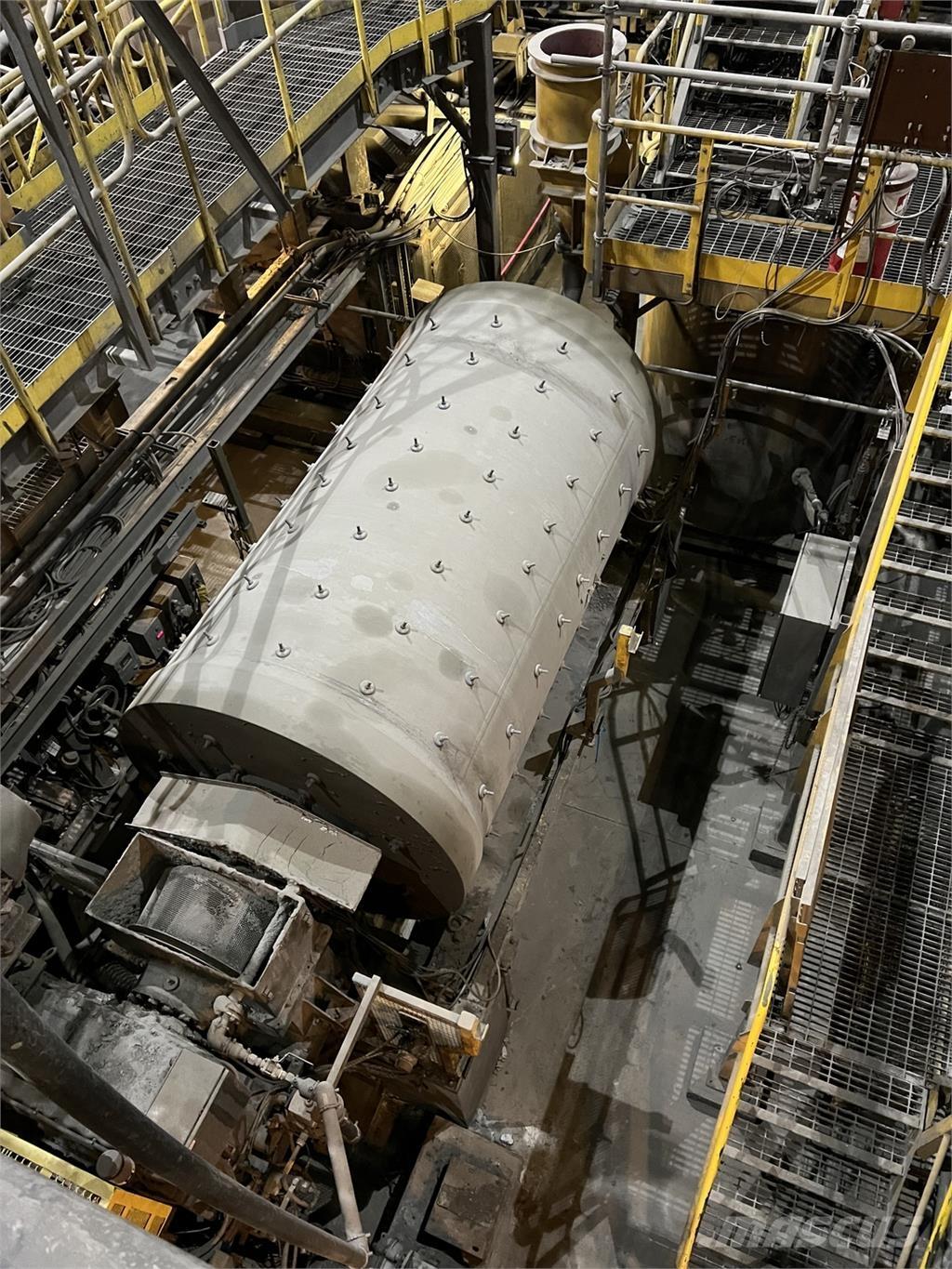

Outotec Regrind Ball Mill 2 m x 3.4 m w/ Gear Reducer & 160 kW Motor – Mining Mining Equipment Title: Regrind Ball Mill 2 m x 3.4 m w/ Gear Reducer & 160 kW Motor SKU: 137952 Condition: Used S/N: 15-06-BM [Manual PDF](... Mill Specifications Mill Type: Frame Mounted Ball Mill Mill Shell ID: 2.0m Mill Length FF: 3.55m Mill Effective Grinding Length: 3.4m Mill Support Type: SRB Mill Drive Type: Direct Trunnion Drive Process Type: Wet Discharge Type: Overflow Drive & Power Motor Power: 160kW Motor Type: Induction (SCIM) Motor Speed: 1790RPM Voltage: 575V Mill Technical Specifications Design Mill Speed: 23RPM Max. Mill Speed: 23RPM Shell Direction: Clockwise (from feed end) Mill Liner Material: Rubber Media Material Type: Forged Steel Media Top Size: 50mm Power Draw at Normal Operation: 160kW (220HP) Process Data Feed Material: AU (Gold) Material Specific Density: 2.8 Ball BWI: 14.8kWh/mt Max. Feed Size (F100): 3000 micron Feed Size (F80): 700 micron Product Size (P80): 38 micron Process Type: Wet Dry Feed Rate: 6.6mtph Throughput (Total Circulating Load): 23.1mtph Circuit Type: Classifier - Mill % Circulating Load: 250 % Solids: 70 Slurry Temp.: Ambient Major Component Weights (kg) Shell: 6664 Main Motor Assembly: 1012 FE Trunnion Assembly: 1100 DE Trunnion Assembly: 1400 Main Gearbox: 2800 Main Base Frame: 1900 [General Arrangement Drawing](... Section / Assembly Drawing](...
