Terex D3C

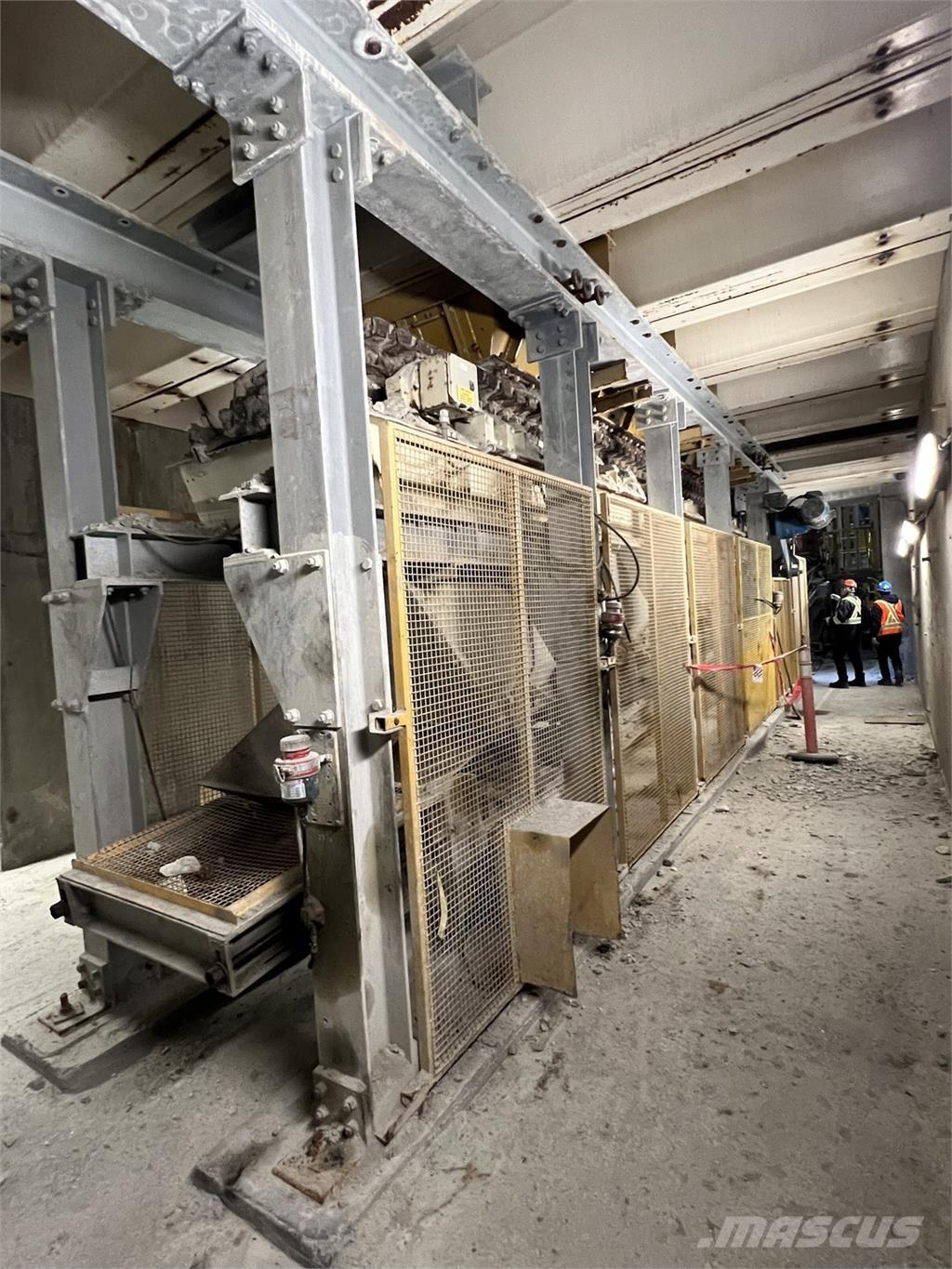

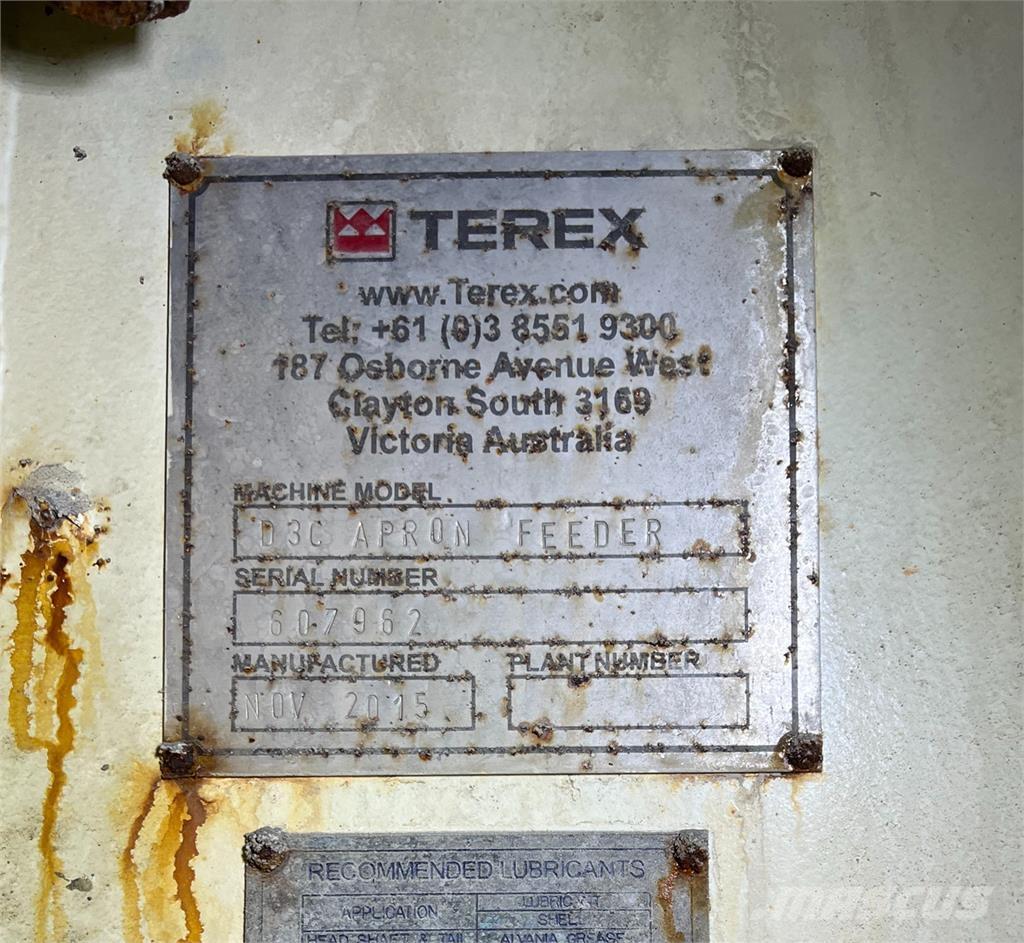

2015 TEREX D3C Jacques Apron Feeder, 650 mm x 7581 mm – Conveyors Conveyors – Mining, Aggregate, or Oil and Gas , Fixed Title: Jacques D3C Apron Feeder, 650 mm x 7581 mm SKU: 137902 Model: D3C Year: 2015 Condition: Used S/N: 607962 GeneralApplication:Mining, Aggregate, or Oil and Gas Conveyor Configuration:Fixed [PDF BROCHURE](... MANUAL](... An apron feeder is a mechanical feed conveyor used to extract raw material typically from dump hoppers, bins and stockpiles. Apron feeders are used to extract or feed materials at a short distance with a controlled rate of speed. - Typical applications include primary hopper recovery, stockpile reclaim, crusher feed and reclaim, ship and rail-car loading and unloading stations, ore pass recovery and other installations requiring a controlled feed. - Terex Jaques Apron Feeders use heavy-duty crawler tractor carrying rollers and chain, a fabricated support frame and high-strength steel head shafts and tail shafts. The lifetime of all parts is long, even under severe conditions, and maintenance requirements are low. Feeder Feeder Length: 650 mm Feeder Width: 7581 mm Feeder Flight Thickness: 19 mm Nominal Capacity: 40 tph - 65 tph Density of Ore: 1700 kg/m3 Deck Speed: 0.03 - 0.06 m/s Gearbox & Motor Part No.: 313 R4 FP P160 B3 G0A TK TA Ratio: 647:1 Power: 15 kW Max. Normal Operating Speed: 1559 rpm Normal Operating Speed: 1028 rpm Min. Normal Operating Speed: 679 rpm
