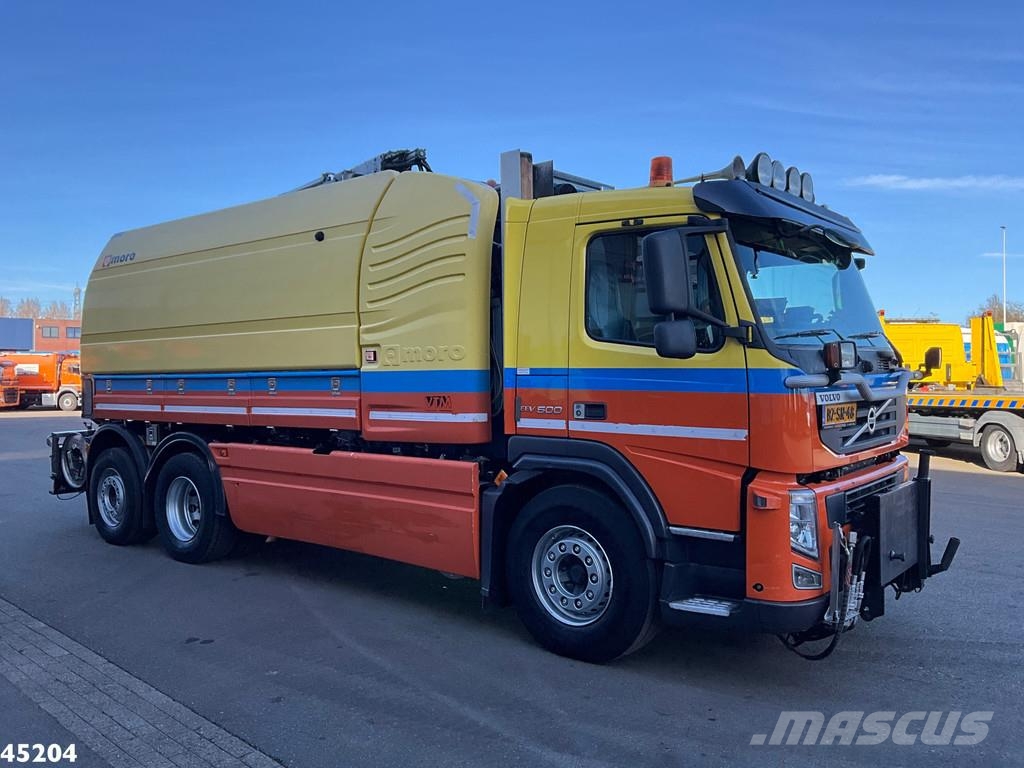

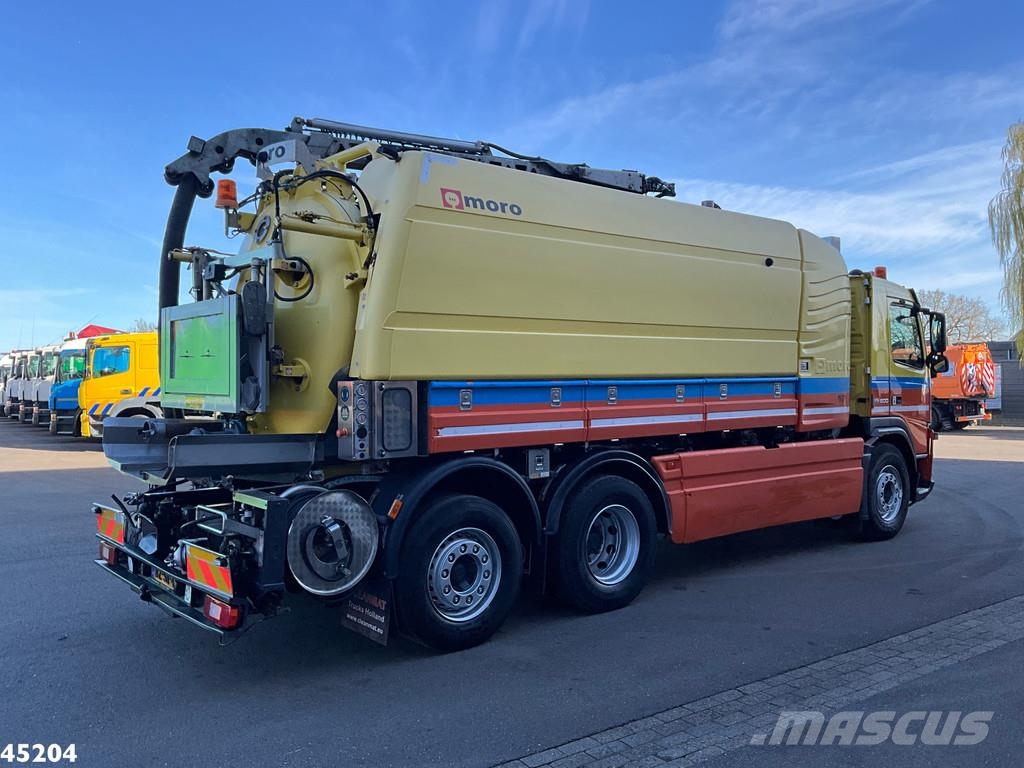

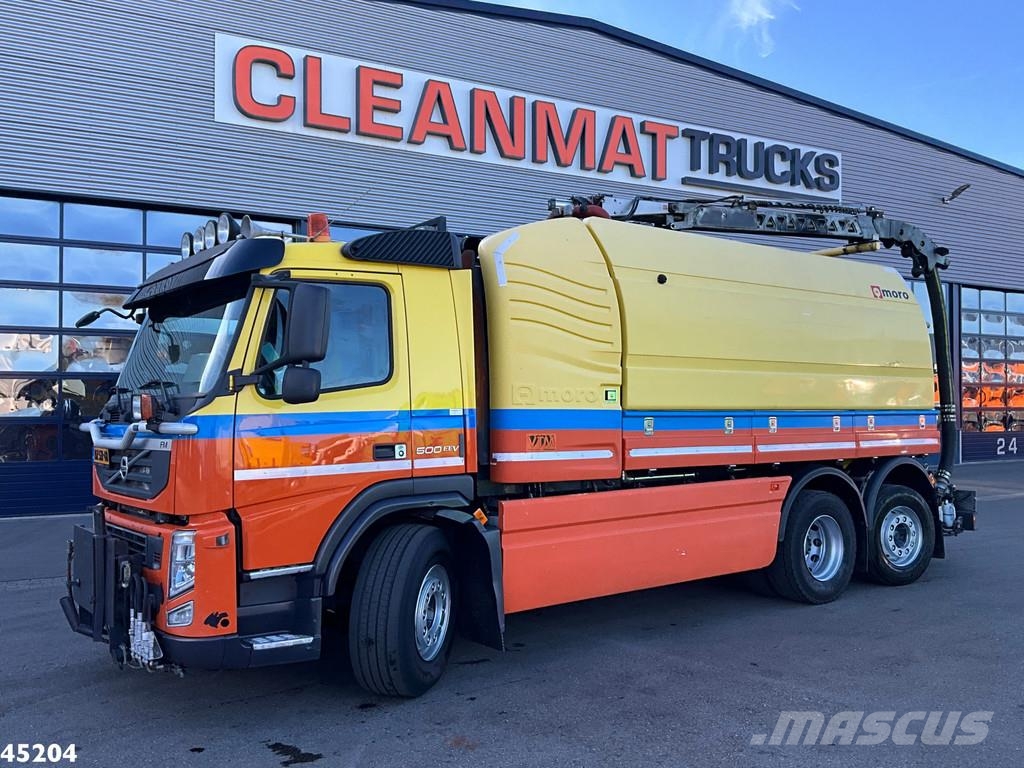

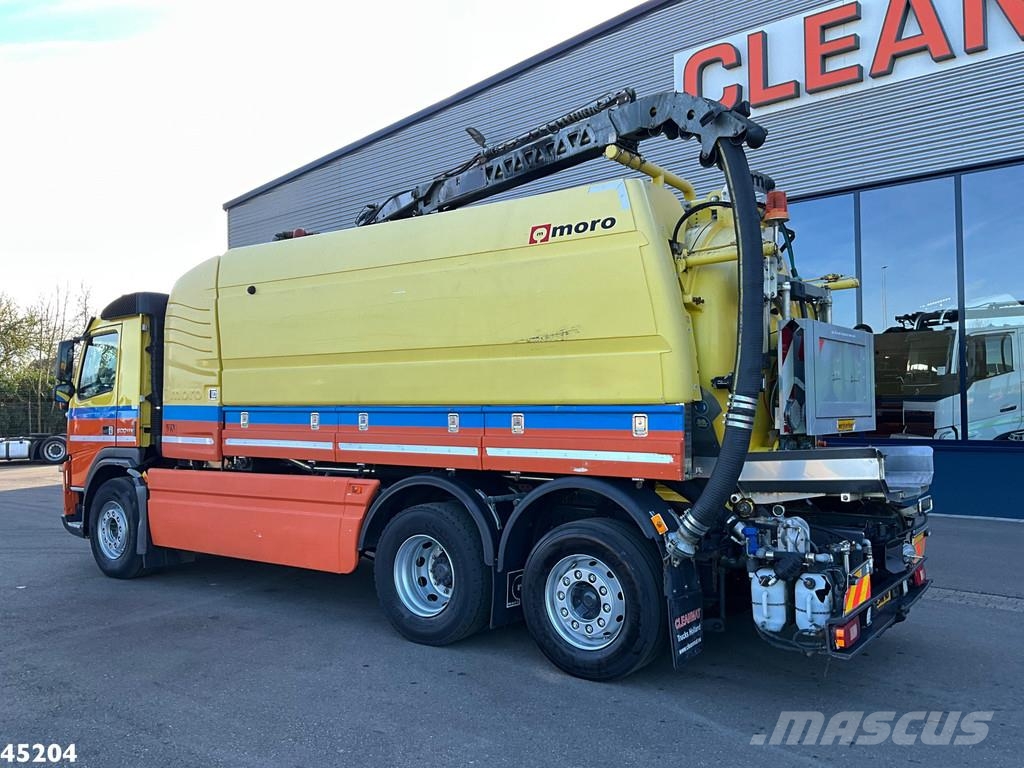

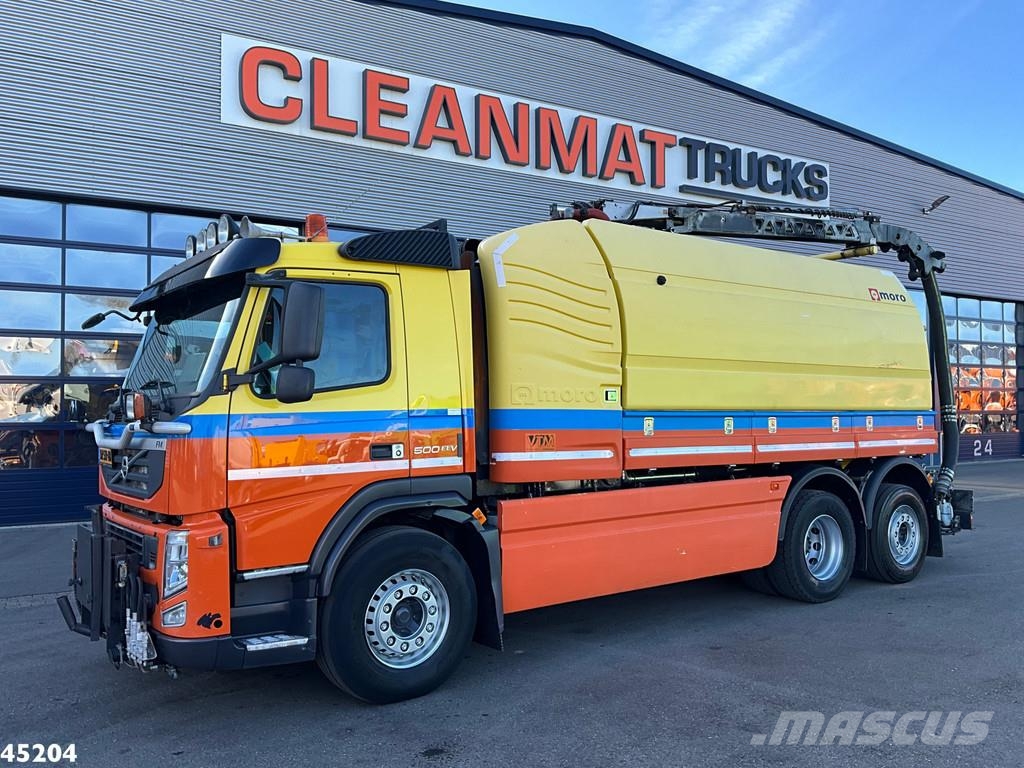

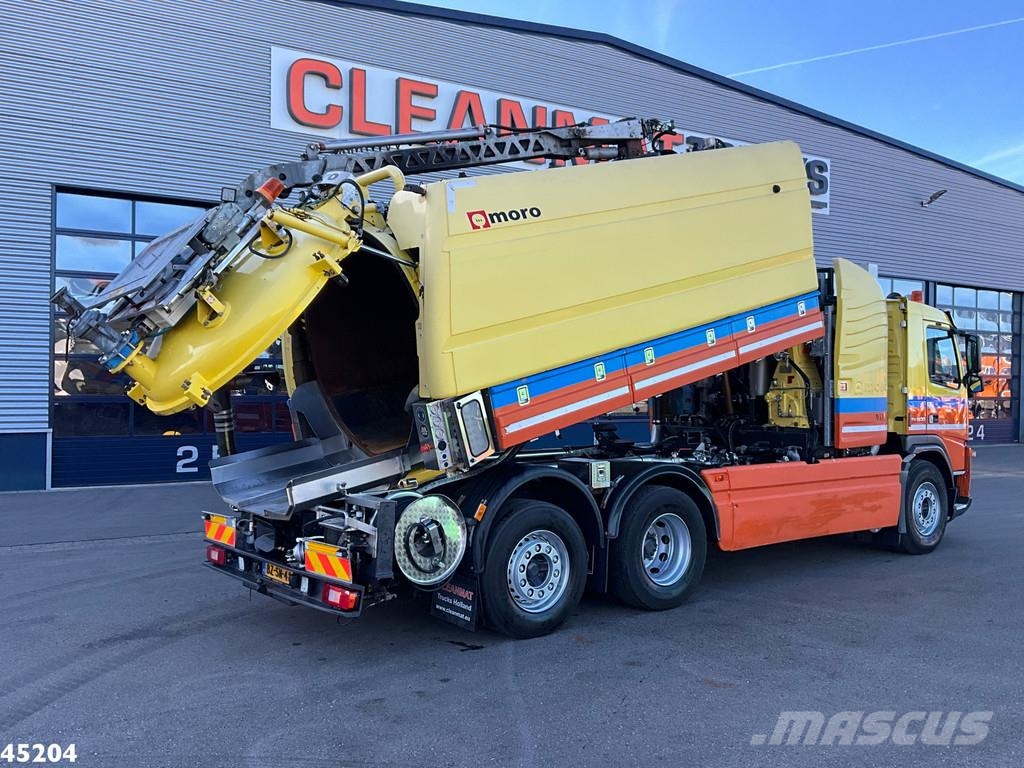

Volvo FM 500 Euro 5 MORO kolkenzuiger

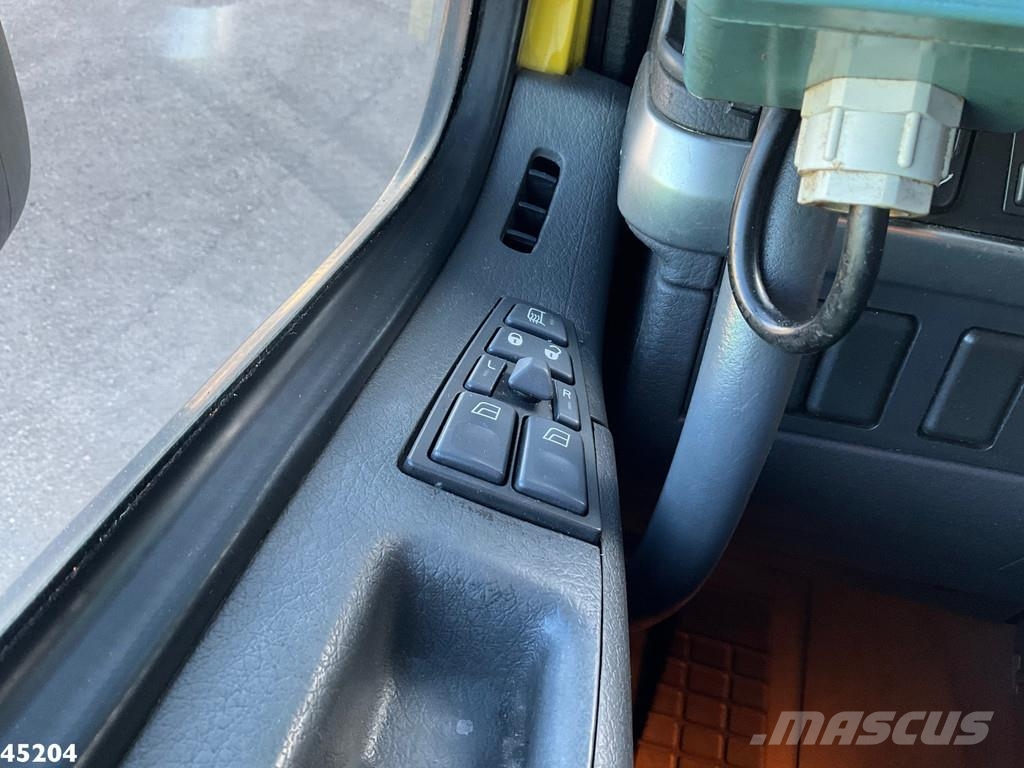

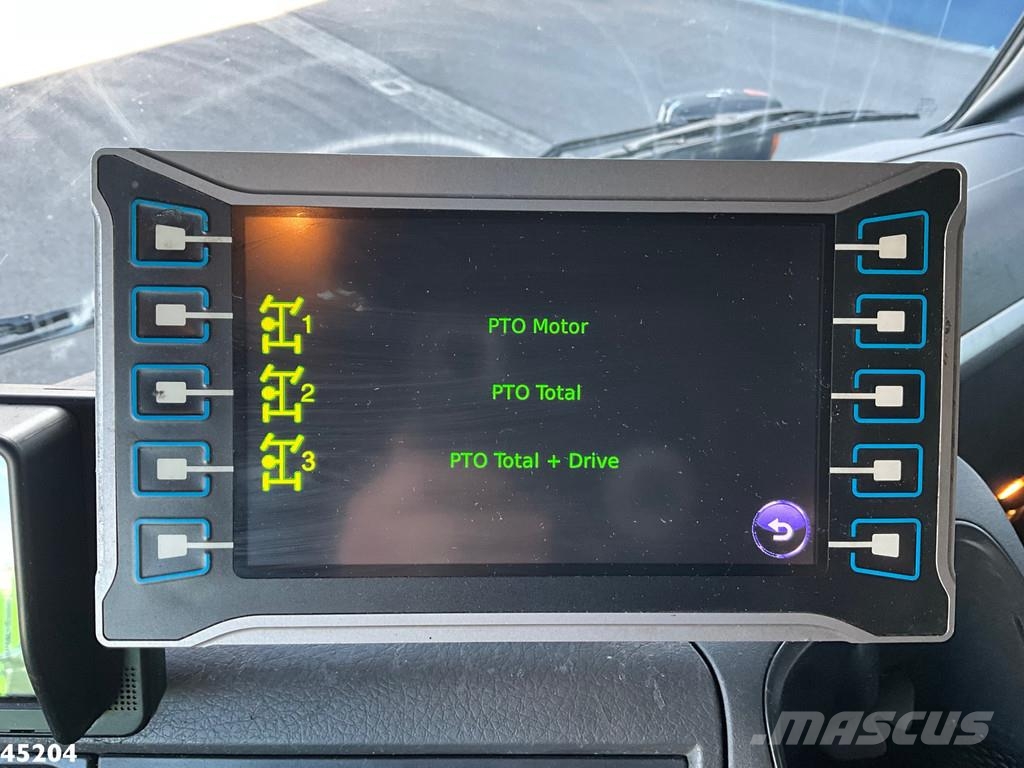

Ventanas eléctricas, Estéreo, Escotilla de techo, Caja de herramientas, Bloqueo del diferencial, TDF, ABS, EBS, Visera solar

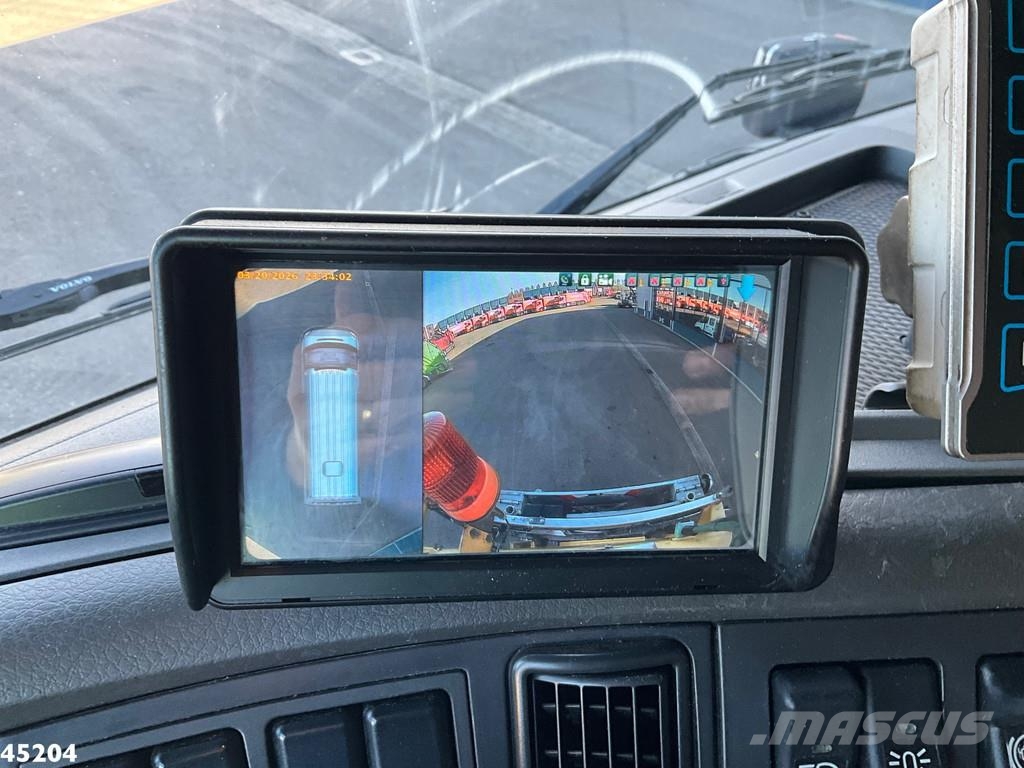

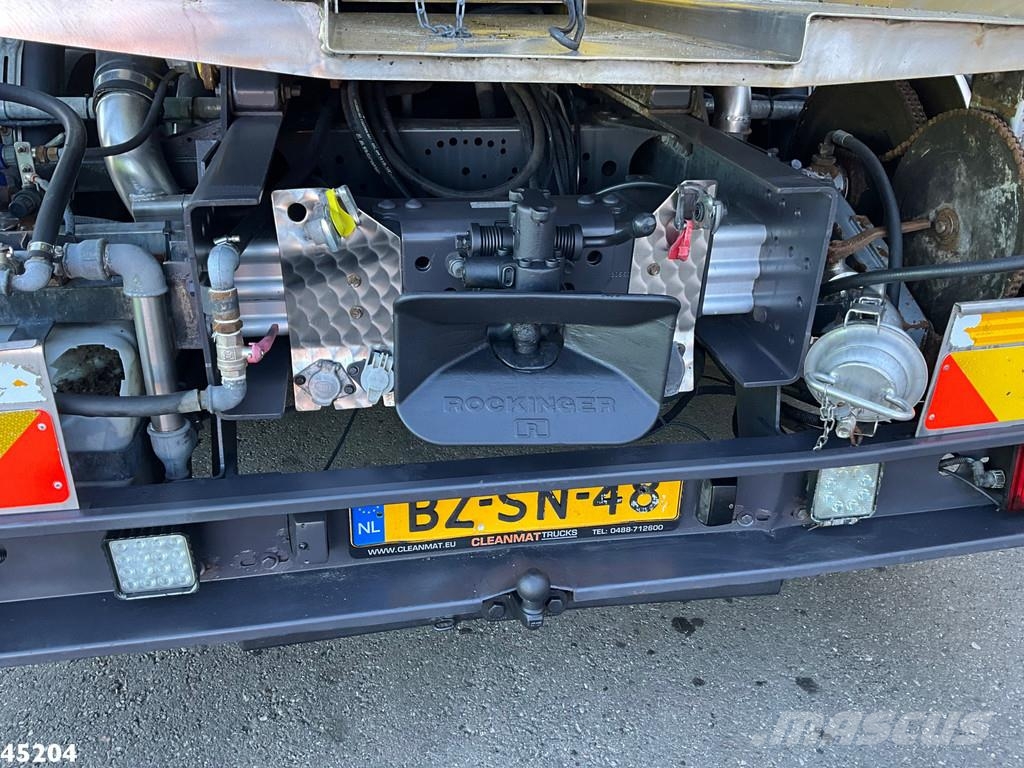

NL: Achteruitrijcamera, Airconditioning, Armsteun, Camera met monitor, Cruise control, Euro 5 motor, Hefbare gestuurde naloopas, Luchtvering op de achteras (sen), Radio cd speler, Radiografische afstandsbediening kraan, Trekhaak, Vangmuil 40 mm, Zwaailampen EN: Airconditioning, Air suspension rear, Camera with monitor, Central armrest, Coupling 40 mm, Cruise control, Euro 5, Liftable and steering axle, Radio/CD player, Remote control crane, Reversing camera, Towbar, Warning lights

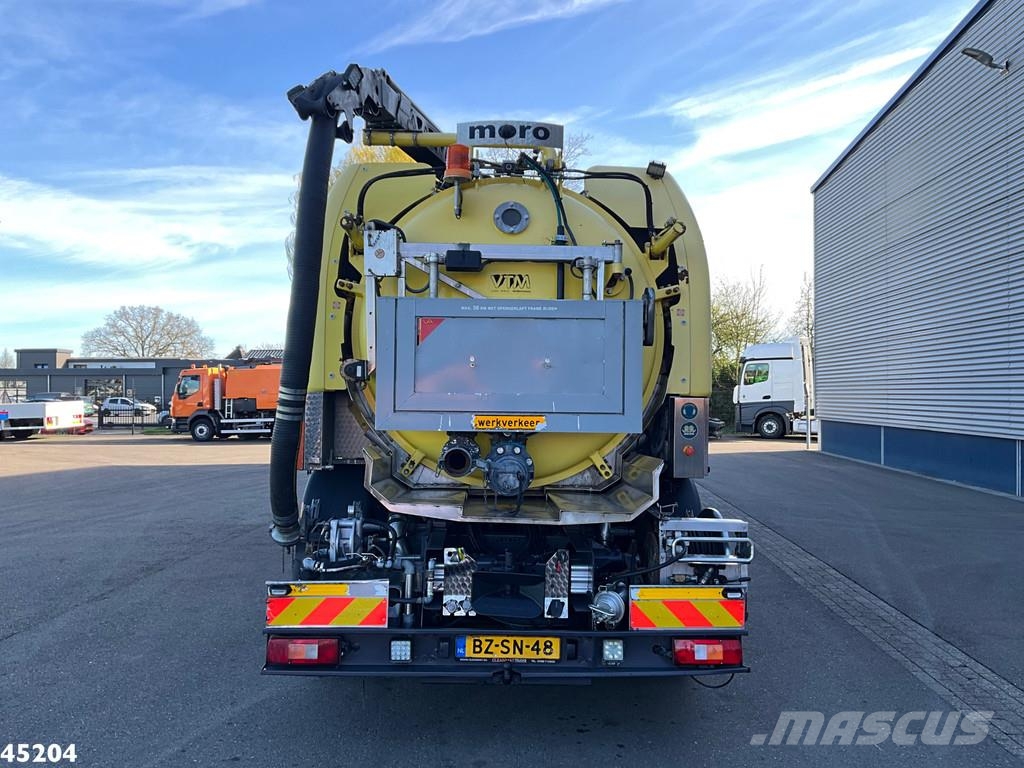

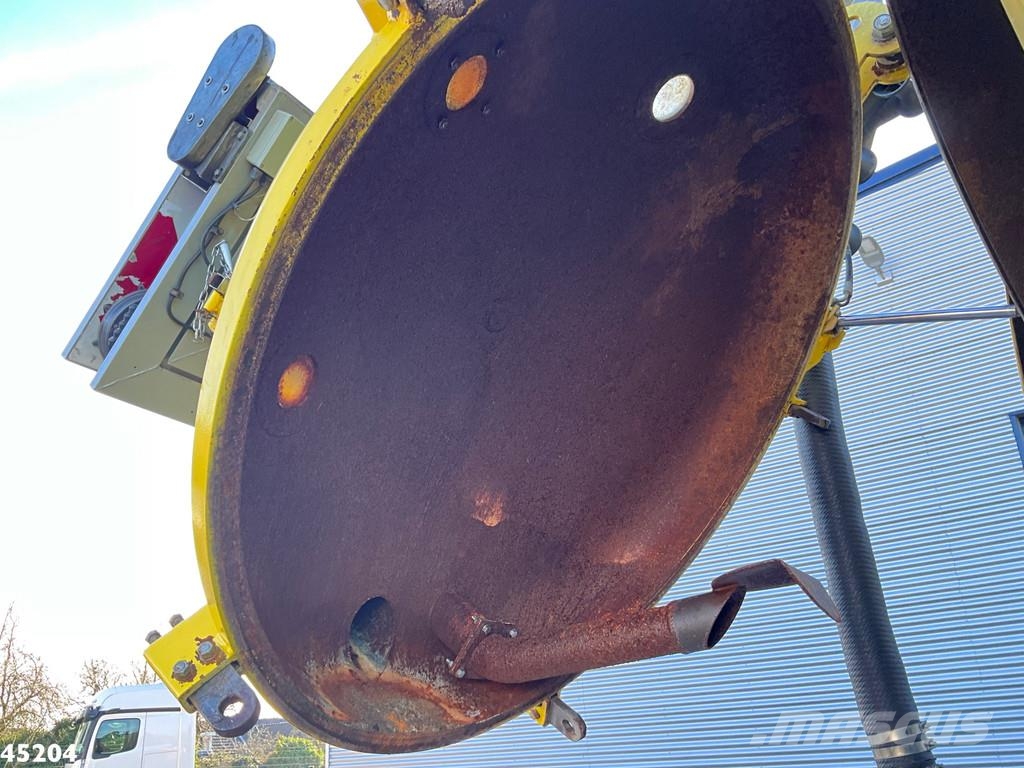

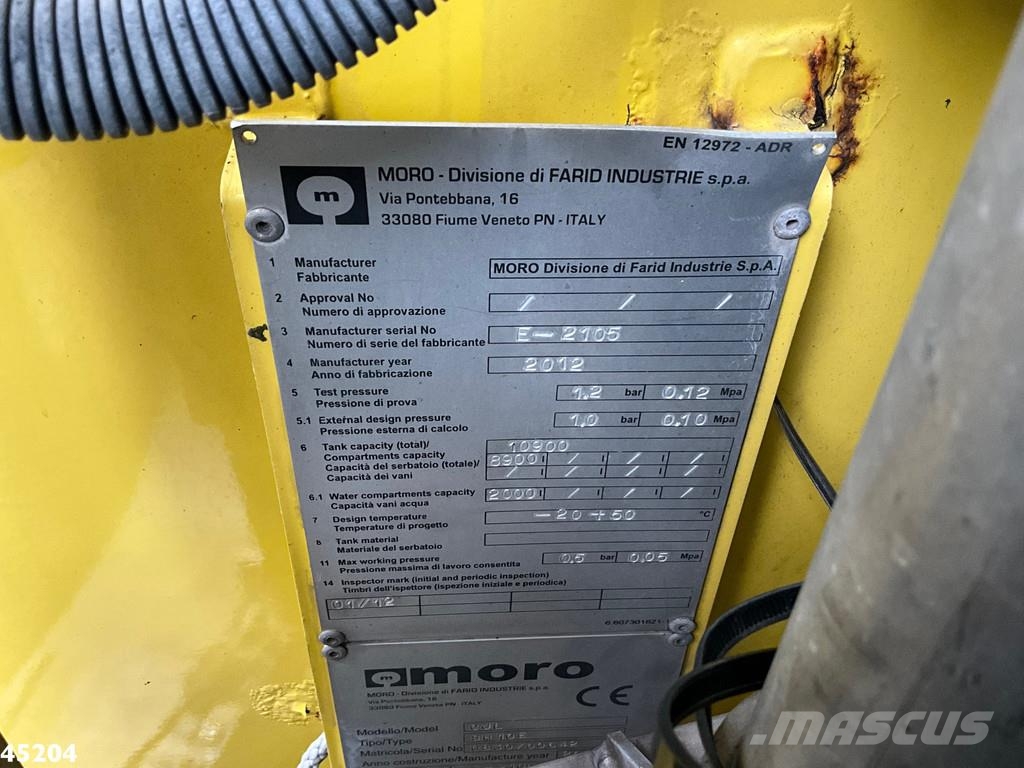

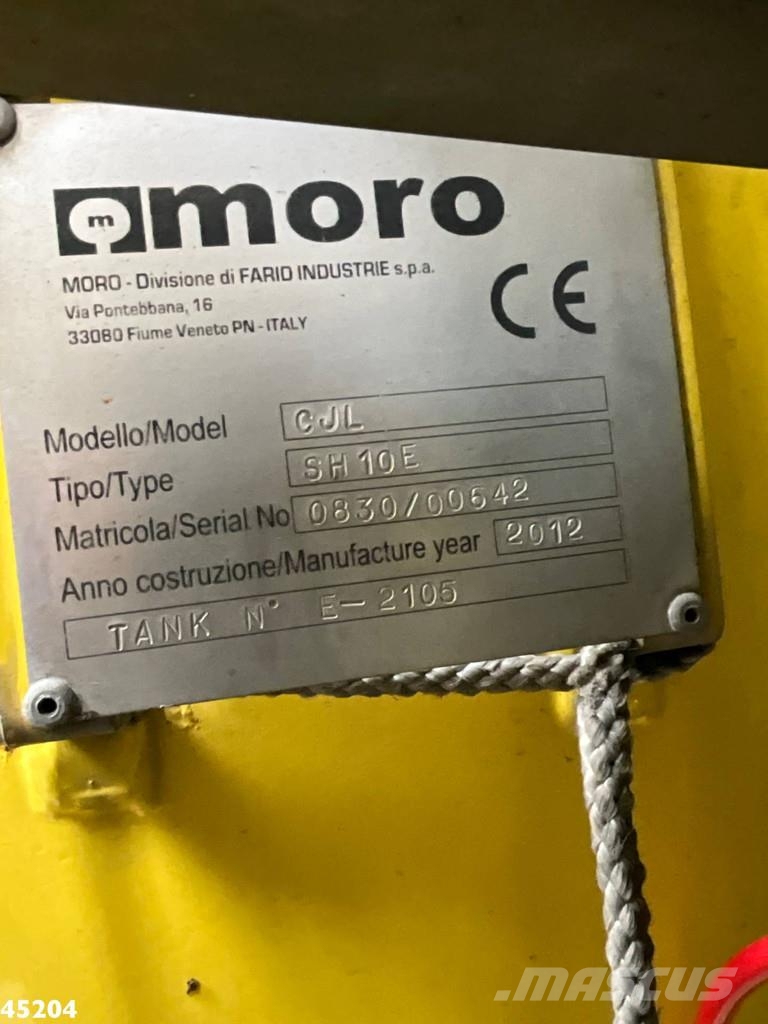

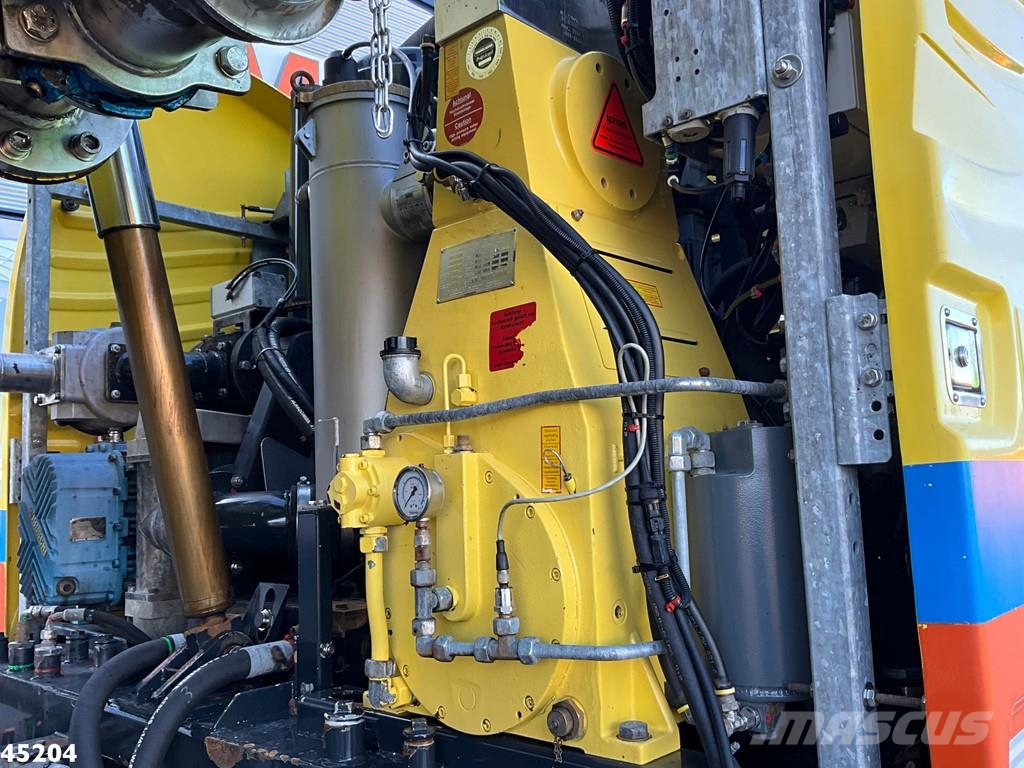

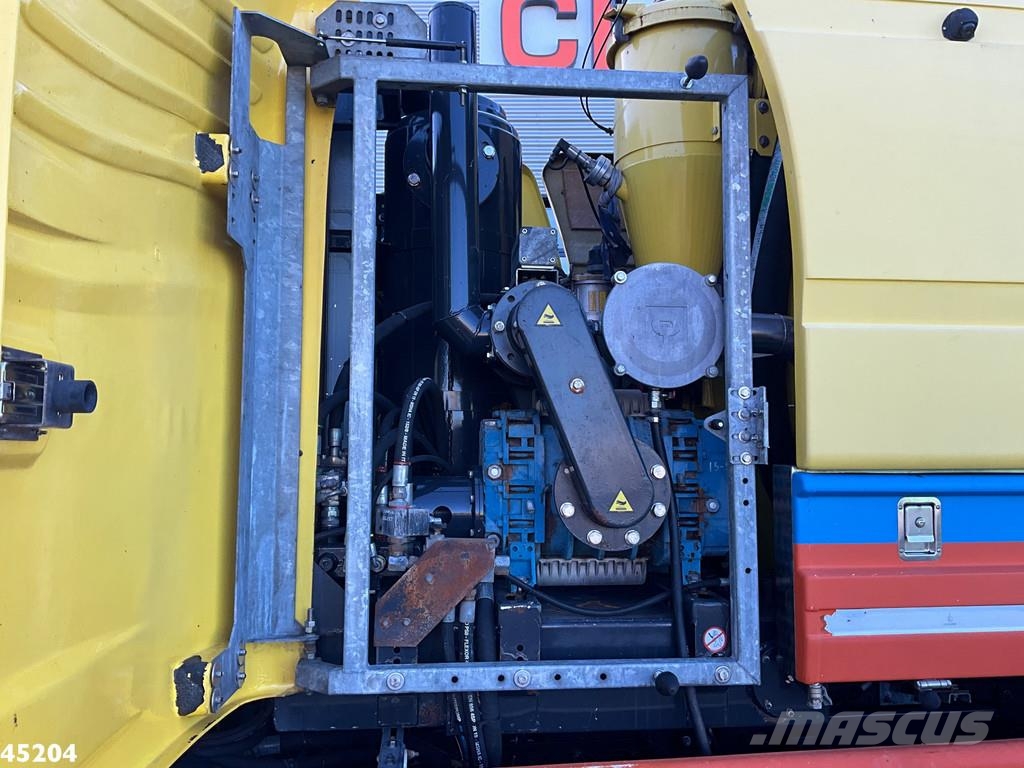

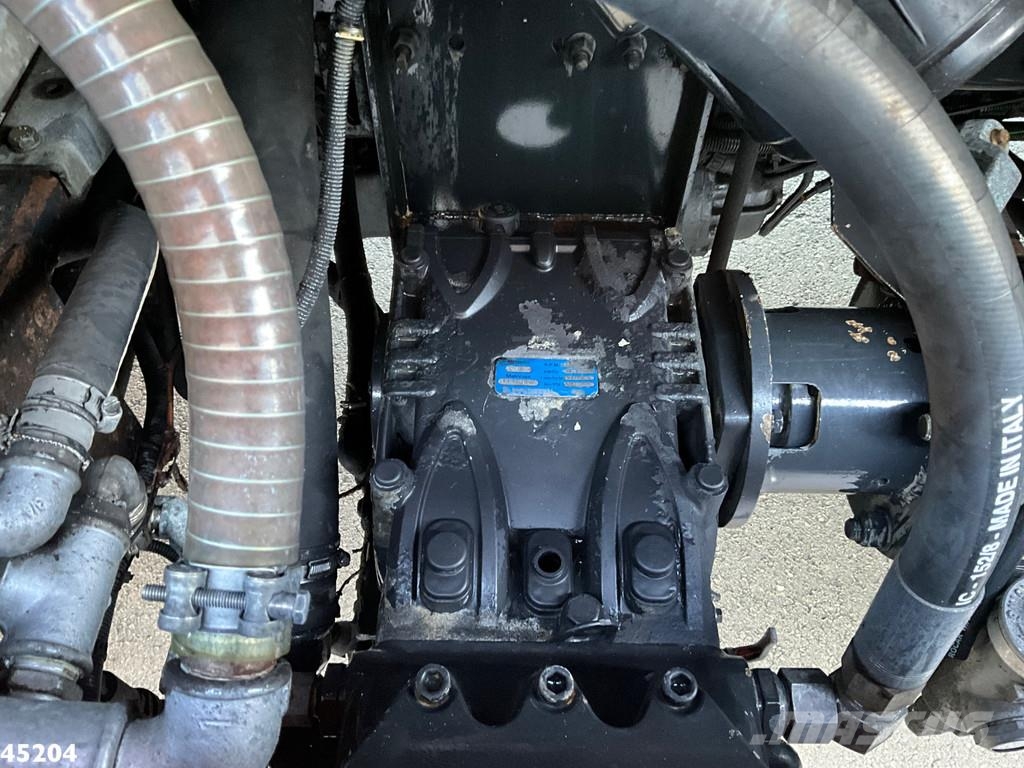

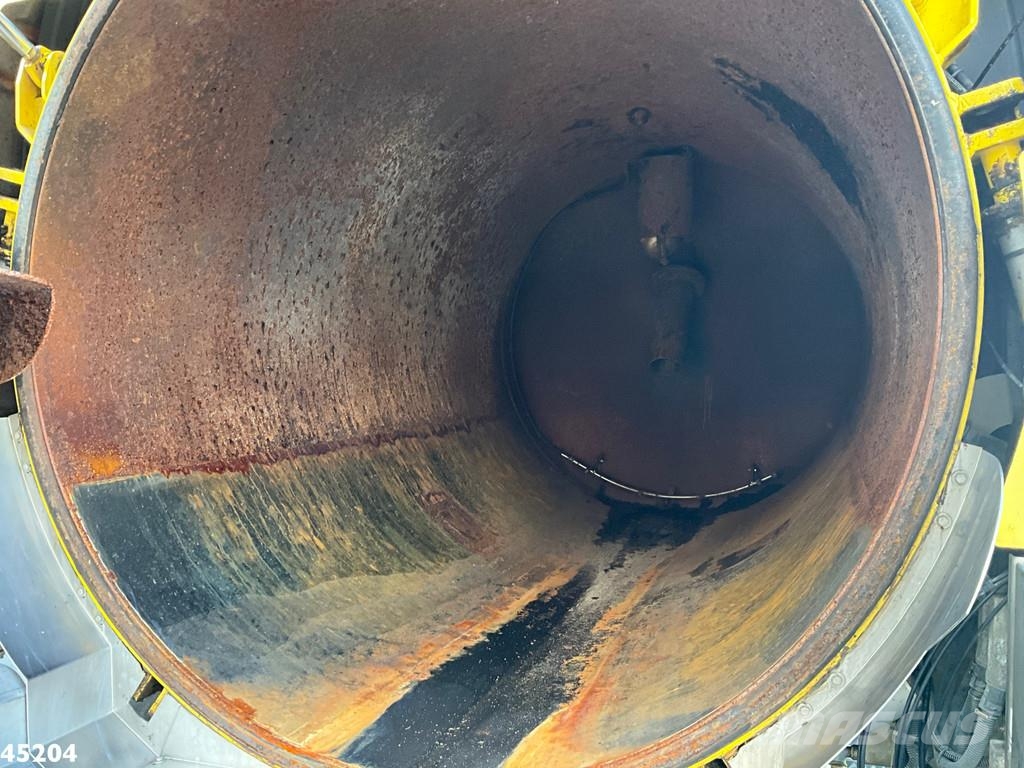

- MORO (type SH10E) gully emptier - Cylindrical tank, made of carbon steel Fe 510 D, vacuum resistant - Cylindrical vacuum resistant end plates - Level indicator - Tank geometric capacity: 10,900 l. approx. (2,000 l. for water and 8,900 l. for dirt) + 3,600 l. in the side water tanks in any case such that the technical permissibility of the chassis does not exceed the GVW. - Overpressure valve with safety pressure valve - Tailgate to be opened by two double-acting hydraulic cylinders, with closing protection - Pneumatic protection to prevent opening while driving. - Rear door locking via hydraulically operated hooks - Manually operated 4" tap with pipe on the inside for water drain - Pneumatic 6” tap for drain etc on rear door - Tank tipping installation with single-acting cylinder - ROBUSCHI lobe vacuum pump model RB-DV 85 built between the cabin and the tank on steel frame - Max theoretical capacity 2.724 cu.m, max theoretical vacuum 93% - Mechanically driven via belts and pulleys with clutch - Pneumatic 4-way valve for suction/pressure function - Non-return valve - Hydraulically operated 5” Suction tower rotation 360° - Suction tower mounted on top of the tank - Complete with pneumatically operated speed control - Hydraulically 360° rotatable. - First high pressure Hammelmann Plunger Pump - TUNGSTEN CARBIDE plungers high pressure pump mod. HDP 174 - Capacity 36 Liters per minute - Max pressure 2,500 bar - Second High Pressure Plunger Pump - Triplex plungers Pratissoli high pressure pump mod. KF 36-160 - Capacity 122 Liters per minute - Max pressure 160 bar - Total drive built between the gearbox and the rear axle - PTO for Hydrostatic driving of the vehicle - Drive of the vacuum pump and the water pumps via hydraulic motors and pumps. Switching on the PTO in the cabin - Combined operation of the pumps is possible - 6 x hydraulic couplings at the front - DIN plate - In good condition! = More information = General information Number of doors: 2 Technical information Number of cylinders: 6 Axle configuration Axle configuration: 6x2 Front axle: Tyre size: 385/65 22.5; Max. axle load: 9000 kg; Steering; Tyre profile left: 60%; Tyre profile right: 60%; Suspension: leaf suspension Rear axle 1: Tyre size: 315/70 22.5; Double wheels; Max. axle load: 11500 kg; Tyre profile left inner: 60%; Tyre profile left outer: 60%; Tyre profile right outer: 60%; Tyre profile right outer: 60%; Reduction: single reduction; Suspension: air suspension Rear axle 2: Tyre size: 385/55 22.5; Lift axle; Max. axle load: 7500 kg; Steering; Tyre profile left: 60%; Tyre profile right: 60%; Suspension: air suspension Measures and weights Empty weight: 18.875 kg Carrying capacity: 9.125 kg Dimensions (LxBxH): 900 x 255 x 380 cm Functional Make of bodywork: MORO SH10E Interior Number of seats: 2 Condition Technical condition: good Visual appearance: good Product safety Manufacturer: Clean Mat Trucks B.V. Wageningsestraat 17 6673DB ANDELST, NL 0488712600 http://www.cleanmat.eu sales@cleanmat.eu
