Matec MAGNUM FP2000X2000

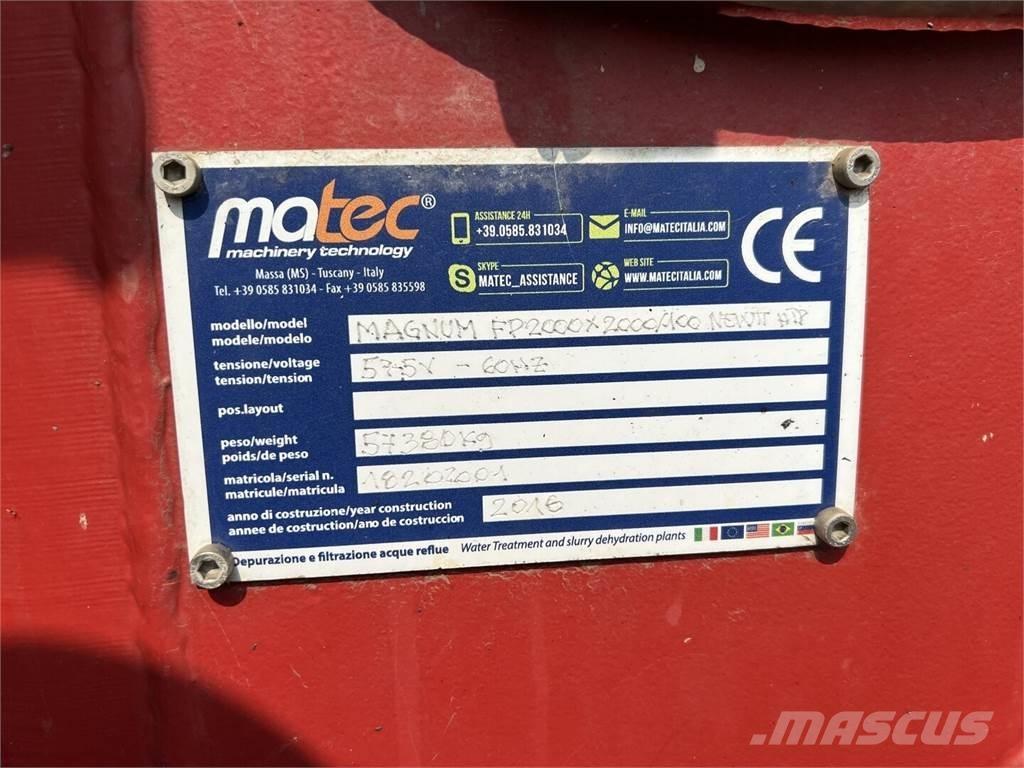

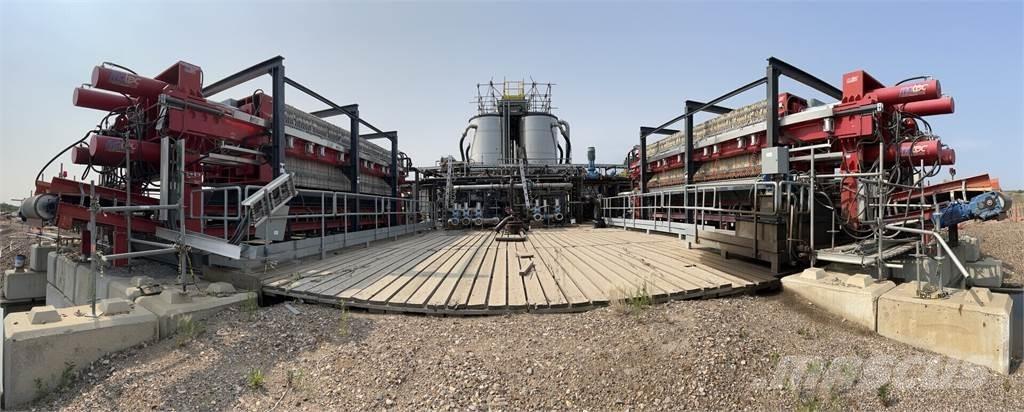

Filter Press System Title: Filter Press System SKU: 114324 Model: MAGNUM FP2000X2000 Year: 2018 Condition: Used S/N: 18202001 - 18202002 [PDF INSTALLATION MANUAL](... MAGNUM FILTER PRESS DATA SHEET](... Process - The actual filtration process occurs in the filter pack, consisting of a customized set of plates. - The cloths and under-cloths cover the filtrating surface of the plate, which has small projecting cylinders forming drainage channels. - Once the filter pack is completely sealed, the filtration process begins from the head plate with the feed pump injecting the sludge into the filter plates chambers. - The cake will form uniformly all across the filtrating surface and is ready for discharging once the required moisture level has been reached. Magum Filter Presses Qty: 2 Models: - MAGNUM FP2000X2000/100 NEWTT HTP - MAGNUM FP2000X2000/101 NEWTT HTP System Voltage: 575 V, 60 Hz Length: 14210 mm Width: 3430 mm Foot Wheelbase Length: 12070 mm Foot Wheelbase Width: 1356 mm Total Height: 3795 mm Weight: approx. 57500 kg each Chamber Volume: 115 L Capacity Per Cycle: 11500 L Cu. m/h (2 cycles): 23.00 Ton/h (2 cycles): 42.55 Cu. m/h (3 cycles): 34.50 Ton/h (3 cycles): 63.83 NOTE: The ton/h and cu. m/h data above are calculated on a material specific weight of 1.85 and a 35 mm cake thickness Additional - 6 - Stainless steel tanks - 1 - Smaller stainless steel tank - 2 - Large receiver air tanks (2019) - 1 - Bilton insulated tank, large - 1 - Bilton insulated tank, small - Pumps & actuators - All electrical / transformers
