Metso HP 300
Precio sin IVA
Solicitados
12
Favorito
Compartir
Guardar búsquedaImprimir
INFORMACIÓN
Categoría
Trituradoras
Marca / modelo
Metso HP 300
Año
2022
Lugar
Murray, Utah
País
Estados Unidos
Mascus ID
19CA0D90
DETALLES
Número de unidad
NC000948
Número de serie
HP300SOR0410
Tipo de trituradora
Trituradora de cono
Más información

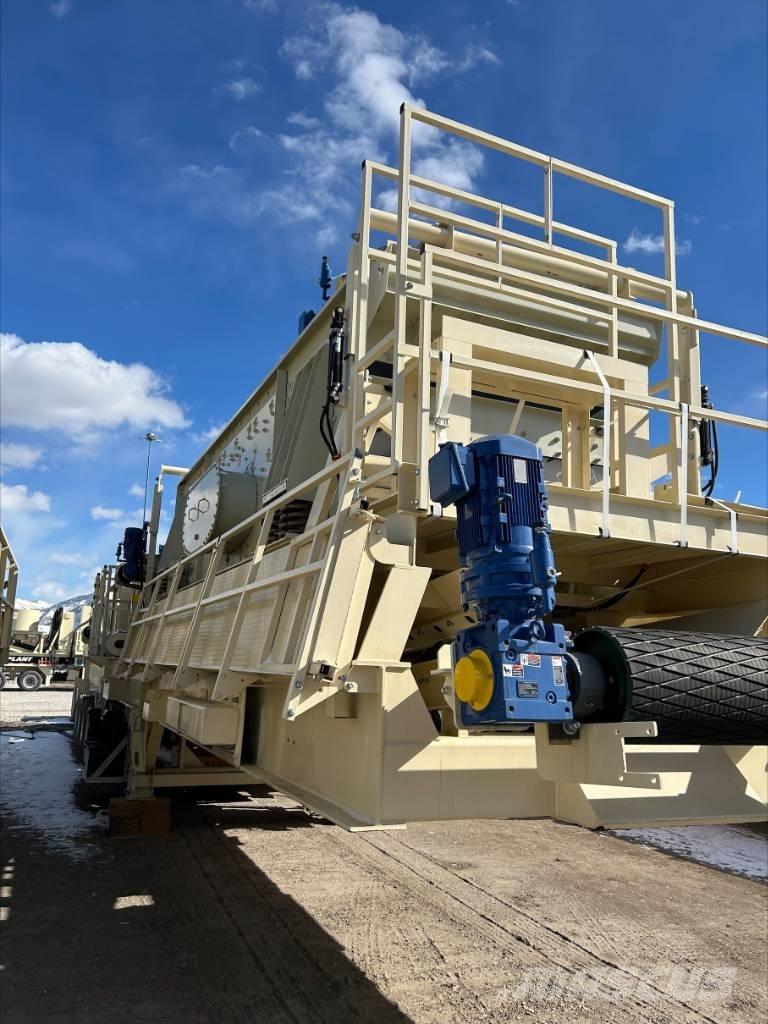

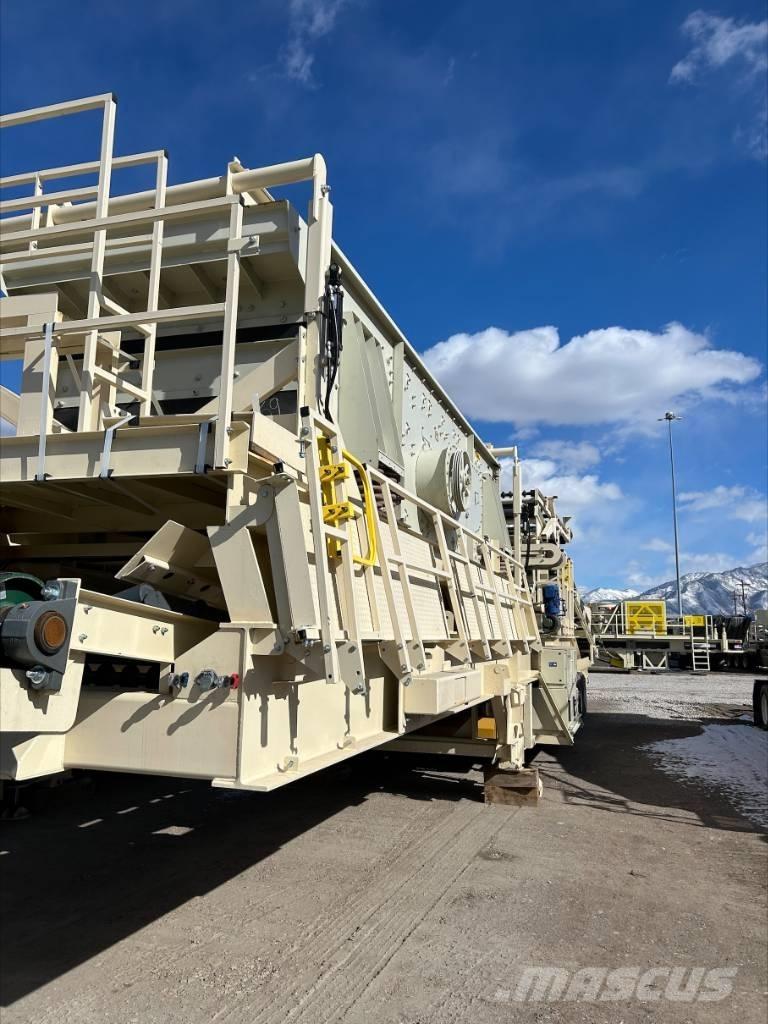

2022 Metso HP300 Closed Circuit Plant on Masaba Chassis w/ 6x20 Deister 3 Deck Screen
CONE CRUSHER HP300
Lube Unit
LUBRINATOR- THE LUBRICATION UNIT CONTAINS AIR-OIL COOLER, WHICH KEEPS OIL TEMPERATURE IDEAL FOR THE BEARING LUBRICATION. THE HYD UNIT HELPS DURING THE SETTING AND MAINTENANCE OPERATIONS MOBILE LUBRICATION UNIT-INCLUDED CRUSHER ECCENTRICITY- STANDARD
MAIN UNIT
HYD MOTOR LOCATION-ON COUNTER-SHAFT CENTERLINE CRUSHER CAVITY-INCLUDED
STANDARD COARSE
MOTOR POSITION- STANDARD BTW 8 AND 4 O'CLOCK
DRIVE- SINGLE DRIVE
ACCUMULATOR CERTIFICATION-STNDRD
AMBIENT TEMP- MINIMUM TEMP 5F
CRUSHER PULLEY-INCLUDED
MOTOR
GROOVES TYPE- 8V
ACCUMULATOR CHARGING KIT-INCLD
OPTIONS
COOLER LOCATION- ON LUB UNIT
FAN-COOLED AIR
COOLER TYPE-AIR COOLER UP TO 40C
3 Deck, 6' x 20' Standard Duty Triple-shafted Horizontal Screen
ONE - TYPE TFM3P-3620, triple deck, 6' x 20' Deister Standard Duty Triple-shafted Standard Duty Horizontal Vibrating Screen, LESS
steel wire screen cloth, but INCLUDING:
Screen Vibrating Frame
Trunnion type spring support mounts on each corner, baked epoxy coated support springs
Snubbers (friction checks) - spring loaded
1/4" thick HSLA steel sideplates formed along the top and bottom, with 5/16" thick formed HSLA steel reinforcing plates bolted to sideplates between bearing housing and sideplates
Access ports with cover plates in the sideplates
Removable back plates, rubber flap and steel combination
Screen media support panel configuration
o Top deck – Screen cloth support panels constructed of fabricated I-beams welded to formed angles bolted to the sideplates
o Middle deck - Screen cloth support panels constructed of fabricated I-beams welded to formed angles bolted to the sideplates
o Bottom deck - Screen cloth support panels constructed of fabricated I-beams welded to formed angles bolted to the sideplates
4" long discharge lips protected by 1/4" thick AR steel replaceable wear plates
Tension plates (skirtboards)
Deister heavy duty tension screen cloth tensioning devices
Feed box with 1/4" AR steel replaceable wear plate in the bottom\
Eccentric Mechanism
The triple-shafted “gear-type” vibrating mechanism is located between the middle and bottom decks and equipped with 120 mm. spherical roller vibrating screen bearings
Steel-flanged vibrating mechanism tubes bolted to the sideplates
Oil fill and drain plugs and the oil level gauges located on the outside surface of the vibrating mechanism end covers plate
Deister “slingermist” oil bath lubrication system, with labyrinth type dust and oil seals requiring approximately 3-1/2 gallons of oil in the vibrating mechanism end covers acting as the oil reservoir and requiring only oil changes every 500 hours
Each vibrating mechanism tube is protected by a 3/8" thick steel-backed rubber shield tack welded to the tube
Eccentric shafts with adjustable weights for stroke adjustment
Bronze sleeve between bearing and shaft
Drive System
Deister heavy duty rubber torsion pivoted motor base, less motor support
Wideband V-belt, and motor sheave
Belt guard, less mounting brackets
Screen Parameters
Screen is horizontal
Approximate operating speed: 790 RPM
Approximate stroke setting: 11/16"
Estimated weight (screen only): 18,600 lbs.
Heavy-Duty Frame construction
o Screen mount and extended discharge lip for cone feed. Top and second deck overs feed cone with removable gated on second deck to by-pass to cross conveyor. Third deck overs feed cross conveyor with flop gate to pass overs to under screen conveyor.
o Cone mount with feed basket.

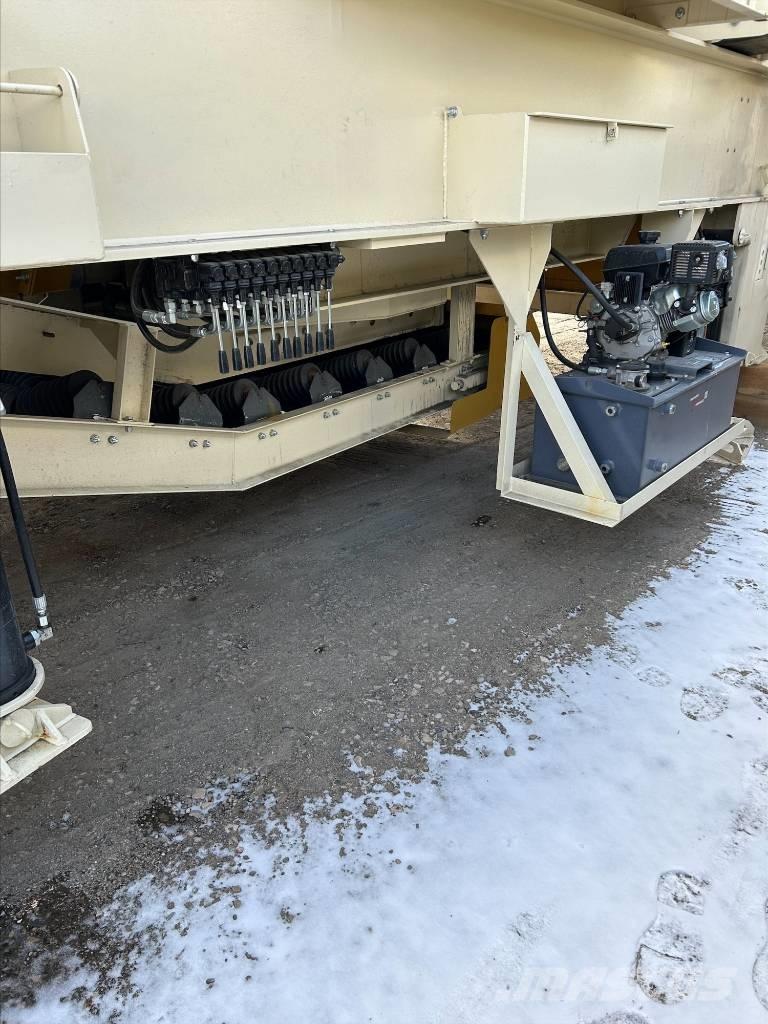

o Hydraulic lube package mounted on outside of trailer beam.
o Under-screen hopper
o Leg mounts for customer supplied hydraulic lifting legs
o Walkways around screen and cone crusher w/ ladder access
o 42” under crusher conveyor frame
o 60” under screen conveyor frame
o 42” Overhead feed conveyorMostrar más
